Type：thermocouple with knife joint for boiler pipe
Illustrate：We adopt knife-shaped joint to be welded on the surface of boiler pipe for the thermocouple. It is used to measure surface of boiler pipe for the thermocouple.

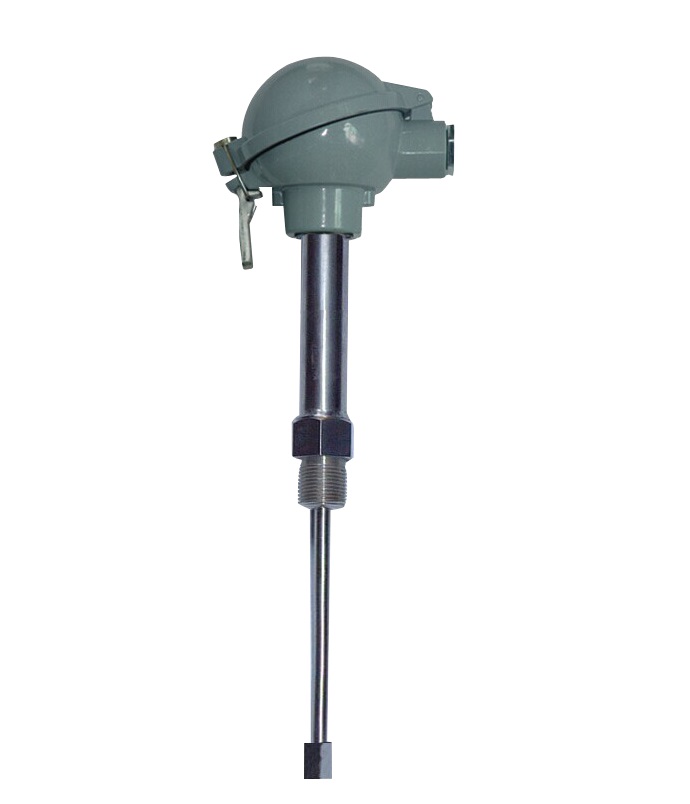

Thermocouple with knife Joint for Boiler Pipe
Application
We adopt knife-shaped joint to be welded on the surface of boiler pipe for the thermocouple. It is used to measure surface of boiler pipe for the thermocouple. It is used to measure surface temperature of boiler pipe. Tower wall in petroleum industry, and is necessary temperature measuring device for fractionating tower in refinery.
Main Technical Parameters
Electric Outlet: M20x1.5NPT1/2
Accuracy Class:1、Ⅱ
Protection Class: IP65
Nominal Pressure:10 M Pa
Type& Specification
| Type | Graduation |
Measuring Range |
Protection Tube Material |
Thermal Response Time |
Specification | |
| WRNK-231D | K | 0~1000 | GH3030 446SS |
not more than 10S |
d | L |
| ∮8 ∮12.7 | 1000 | |||||
| 0~800 | 1Cr18Ni9Ti | 1500 | ||||
| 2000 | ||||||
| 3000 | ||||||
- We may provide different class thermocouples as user’s demand ;
- We also produce protection tube of other material.
