Type：Free Chlorine Sensor without film
Illustrate：FreeChlorineSensorwithoutfilm (on-linechlorinesensor) Features: Noneedofchemical Withoutfilm.Notinflurencedbysurfactant Notmiropoloe.Itwillnotbeplugbymircoimpurity. Standard2-wire4-20mAoutput Easymaintenance Temperaurecompensation Noneedof..
Free Chlorine Sensor without film
(on-line chlorine sensor)
Features:
Application:
Installation: Flow cell installation
Maintenance
Wiring: standard 2-wire
Sensor structure
(on-line chlorine sensor)
Features:
- No need of chemical
- Without film. Not influrenced by surfactant
- Not miropoloe. It will not be plug by mirco impurity.
- Standard 2-wire 4-20mA output
- Easy maintenance
- Temperaure compensation
- No need of pressure balance
- range：0-0.5/2/5/10/20/50ppm or to be customized
- material：POM、PTFE、Gold、Silver，Conductive rubber
- accuracy: ±0.1％FS
- responding time:1-60 second（90％ of all response）
- temperature：5-50℃
- electrolyte working life：1 year
- output：4-20mA
- power supply：12-24V
- flow rate：20-40l/h
- interface：standard 2-wire or 4-wire
- size：φ25*140mm
- installtion way：flow cell installation
- calibration：1 point slope rate calibration，no need of zero point calibration
| Model | range | resolution | ph | Film or not |
| CX-CS-WCL-01 | 0.01-0.5 ppm | 0.001ppm | 5-8 | No |
| CX-CS-WCL-02 | 0.02-2.00ppm | 0.001ppm | 5-8 | No |
| CX-CS-WCL-03 | 0.05-5.00ppm | 0.01ppm | 5-8 | No |
| CX-CS-WCL-04 | 0.1-10.00ppm | 0.01ppm | 5-8 | No |
| CX-CS-WCL-05 | 0.2-20.00ppm | 0.01ppm | 5-8 | No |
| CX-CS-WCL-06 | 0.5-50.00ppm | 0.01ppm | 5-8 | No |
Application:
- Drinking water
- sewage
- pools
- natural water

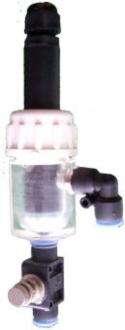

Installation: Flow cell installation
Maintenance
- calibration：to calibrate with DPD way
- maintenance of working electrode surface：to wash the surace with small toothbrush every month
- electrolyte replacement：to be replaced each year

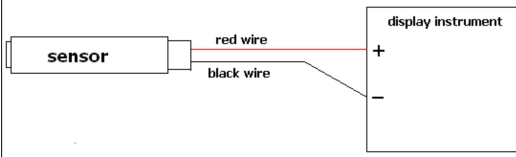

Wiring: standard 2-wire

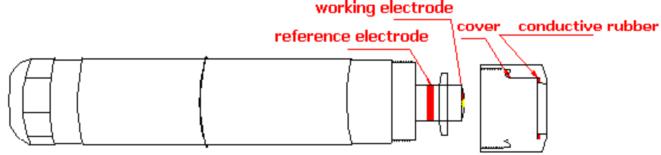

Sensor structure
