CXSC-DS100 Industrial free Chlorine Sensor ---On line analyzer
   Large LCD,Visual display
High precision, reliable performance
Easy to operate

Outline
CXSC-DS100 industrial Free Chlorine analyzer is a new-line residual chlorine analyzer, it is design and develop by Liu Shanliang, the original Chinese Academy of Sciences, this instrument has high intelligence and flexibility, which can measure Free Chlorine, hypochlorous , pH, temperature at  the same time ,it is widely used in electricity, water, medicine, chemical industry  food industry, and also used to measure Free Chlorine in water and the pH value Continuously
Basic functions:
Highly intelligent
CXSC-DS100- industry Free Chlorine on-line analyzer adopt  the  overall design concept, imported core components to ensure high-quality instrument components to Flexible design:
Optional the  Automatic and manual PH and temperature compensation and to meet the various needs of users.

Current output: to use of isolation technology, has anti-interference ability, each channel can be arbitrarily selected measurement parameters, and upper and lower
High and low alarm :Hardware isolation, each channel can be freely selected                                                       measured parameters, the amount of hysteresis can be preset
485 communication:Facilitate to monitor computer
temperature compensation:In 0 ~ 99.9 ℃ automatic temperature compensation.
Waterproof and dustproof  with protection IP65, suitable for outdoor

Main character
Menu design: Object-oriented menu design, make the operation simple and clear.
Multi-screen display: There are five way to display of the instrument to satisfy different requirement of the users
PH calibration: provide Two points calibration and one point calibration function for field applications
Free Chlorine Calibration: provide zero  point calibration and slope  calibration to make the menu clear
Digital Clock: Provides timing functions
Widescreen display: 19264 LCD backlight soft, clear display.
Instrument stability: watchdog function to ensure the instrument of continuous normal operation

Instrument parameters
1．Measurment range : free chlorine: 0～20.00mg/L,resolution: 0.01mg/L
                HOCL: 0～10.00mg/L,resolution 0.01mg/L
pH value: 0～14.00pH,resolution 0.01pH
temperature: 0～99.9℃,resolution 0.1℃
2．a(chǎn)ccuracy:free chlorine :exceed than ±1% or ± 0.01mg/L take the large one
HOCL:exceed than ±1% or ± 0.01mg/L take the large one
pH value : exceed than ±0.01pH
temperature :exceed than ±0.5℃( 0～60.0℃)
3．Lowest detection limit:0.01mg/L
4．Repeatability:  free chlorine :±0.01mg/L
pH value :±0.01pH
5．Stability:chlorine :±0.01( mg/L)/24h
pH value :±0.01pH/24h
6．PH Input resistance:≥1012 Ω
7．Current blocking output :0～10mA( Load<750 Ω), 4～20 mA( Load<750 Ω )
Two current outputs; each channel can independently select the corresponding measuring parameters( HOCL,FAC,PH,T)
8．Output current error:≤±1%FS
9．High and low alarm: AC220V,10A, each channel can independently select the corresponding measuring parameters( HOCL,FAC,PH,T)
Alarm hysteresis amount, according to the  selected parameters
10．RS485 communication : Part Compatible the Modbus protocol-compatible (optional)
11．Work environment :0～60℃  Relative Humidity <85%
12．Power supply :    AC:165~265V,power:≤10W
13．Degree of protection:IP65
14．Installation :   Rack and Wall
15．Size :150( length)×150( width )×210( deep)mm
16．Hole size:135×135 mm
17．weight:0.8kg

Note: Optional two current outputs, and required two isolated power to supply power at the same time.

Package
CXSC-DS100 :the packaging industry Free Chlorine monitor ,  the inner plastic bags for moisture proof  in the middle with foam isolation, external loaded with cartons, packing list as shown in Table 3-1:

3-1

NO.	Name	Quantity	Unit
1	Packing list	1	Piece
2	CXSC-DS100 Industrial Free Chlorine monitors	1	Unit
3	Installed Annex	2	Set
4	Use manual	1	piece
5	Product certificate	1	piece

 Installation
Instrument Dimensions:150( L)×150( W)×210( H)mm
hole size:135( L)×135( W)mm

CXSC-DS100 industrial Free Chlorine monitor can adopt two way installations. Mounting hole installation and Wall-mounted installation
Mounting hole: open 135 × 135mm hole on counter in the control panel, use the two cards with random board cross the two mounting holes on both sides, than the instrument fixed to the instrument cabinet.

Wall Installation: drilled holes on the wall, fix the bracket to the wall, then make the instrument through the two mounting holes on both sides of the fixed to the bracket
Installation Notes:
1. to avoid moisture and corrosion place, for the installation
2. During installation, you must cut off the power of the instrument.
3. with solid and reliable installation

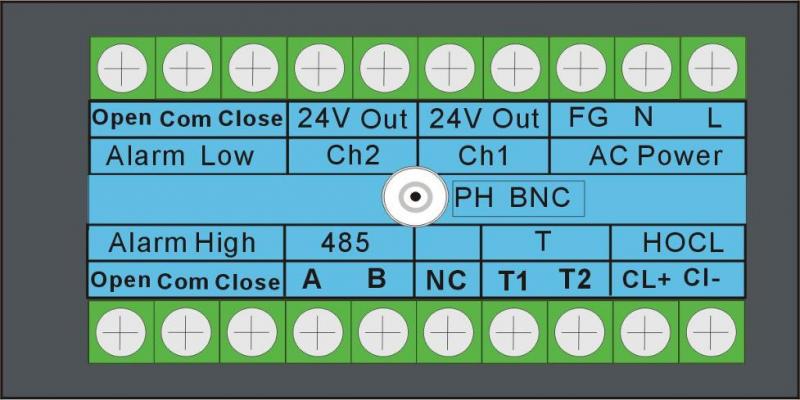

Wiring diagram
Instrument wiring  terminals shown as below, the significance of each terminal as described in Table 6-1:

6-1
