Type：CX-RLM-080 intelligent radar
Illustrate：CX-RLM-080 series of intelligentradar substance position gauge
Intelligent Radar level meter
Products:
|
CX-RLM-080 series of intelligentradar substance position gauge |
 |
 |
 |
| Types | CX-RLM-081 | CX-RLM-082 | CX-RLM-083 |
|
Application |
Process condition is simple, corrosive liquids, slurries and solids For example: Water tank Acid and alkali tanks Slurry tanks Solid granules Small petrol tanks |
Storing corrosive liquids, slurries and solids For example: Water tank Acid and alkali tanks Slurry tanks Solid granules Small petrol tanks |
Suitable for all kinds of storing tanks or process measuring environment, liquids, slurries and solids. For example: Crude oil, light oil tank Coal and powder coal bunkers Volatile liquid tank Charcoal level Slurry tank Solid granules |
| Measuring range | 20 meters | 20 meters | 35 meters |
| Process connection | Screw | Flange | Flange |
| Process temperature | -40-130℃ | -40-150℃ | -40-250℃ |
| Process pressure | -1.0-3bar | -1.0-20bar | -1.0-40bar |
| Repeatability | ± 3mm | ± 3mm | ± 3mm |
| Precision | < 0.1% | < 0.1% | < 0.1% |
| Frequency range | 6.8GHz | 6.8GHz | 6.8GHz |
|
Anti-explosion/ safety grade |
EXiaIICT6/IP68 | EXiaIICT6/IP68 | EXiaIICT6/IP68 |
| Signal output |
4…20mA/HART (two phases) |
4…20mA/HART (two phases) |
4…20mA/HART (two phases) |
Technical data：
Basic parameters working frequency：6.8GHz
measuring range：0…35m
repeatability：±3mm
resolution：1mm
response speed：>0.2s(depends on concrete application status)
electric current signal：4…20mA
precision：<0.1%
Antenna material 081、082 is PP/PTFE
083 is 316L stainless steel
Communication interface HART communication protocol

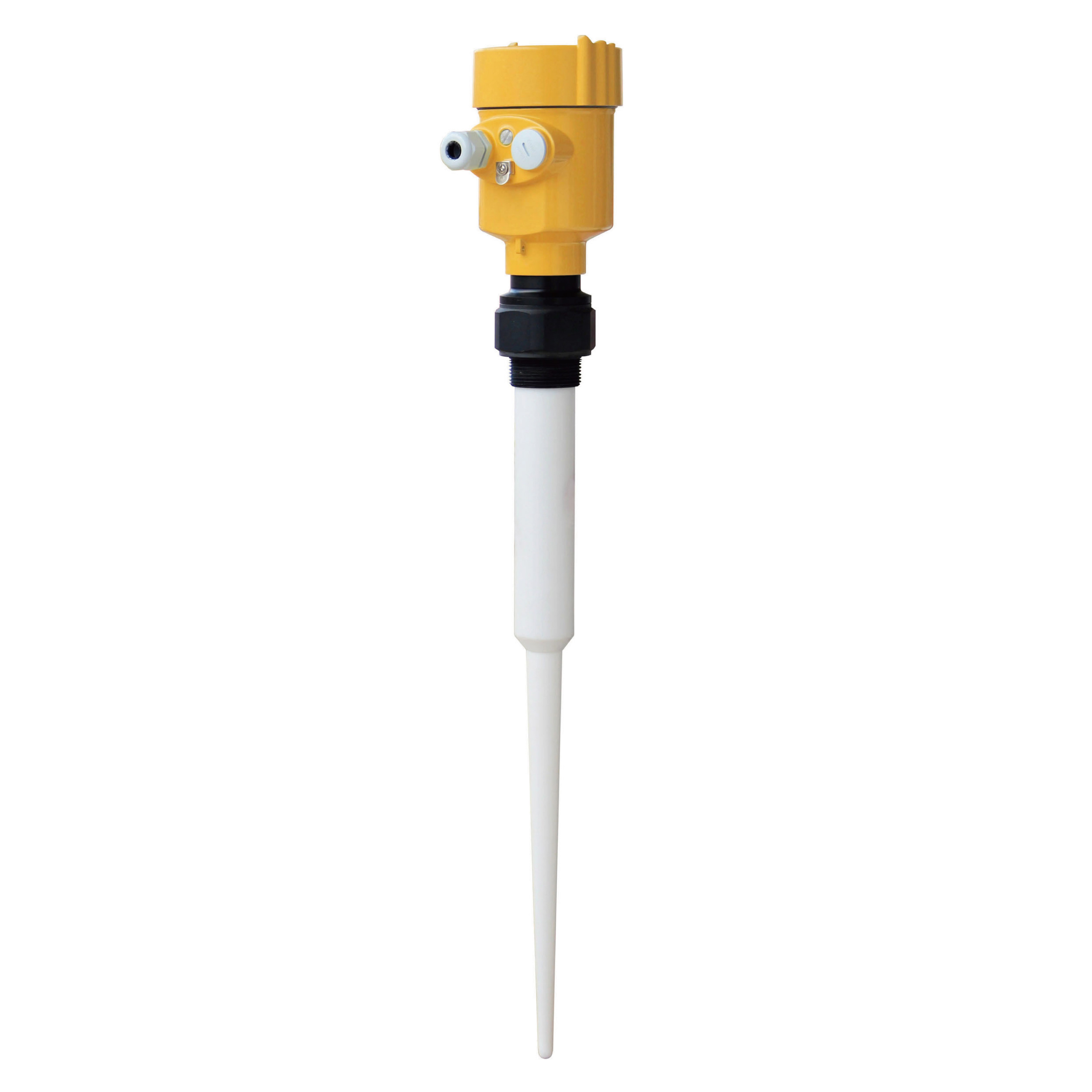

Process connection 081 (PP，PTFE antenna) ：G1-1/2 316L stainless steel：

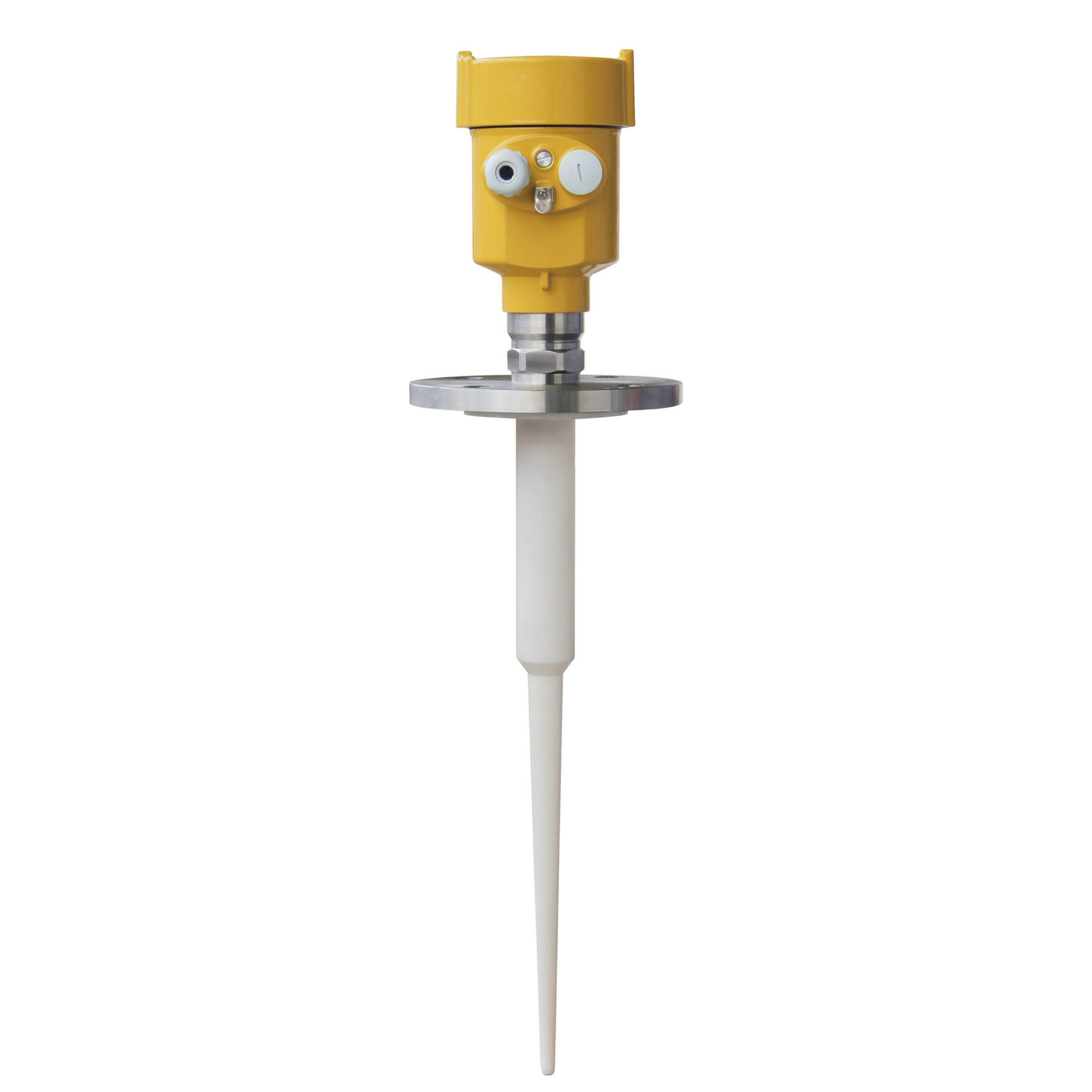

082 (rod type antenna ) ：flanging flange 2″，3″，4″，6″

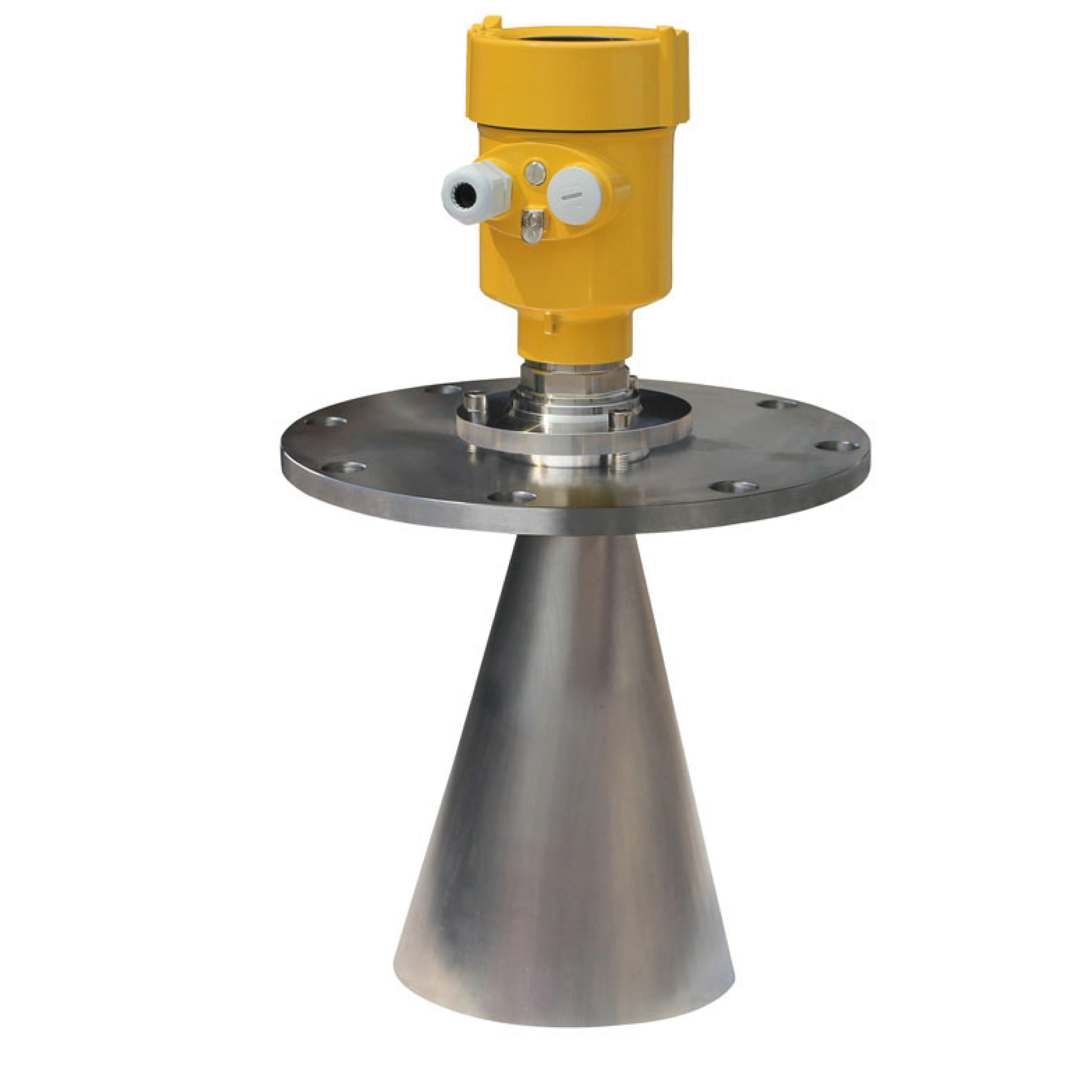

083 (horn type antenna )：flange 2″，3″，4″，6″，8″，10″
Anti-explosion authentication ExiaIIC T6
Shell safety grade IP68

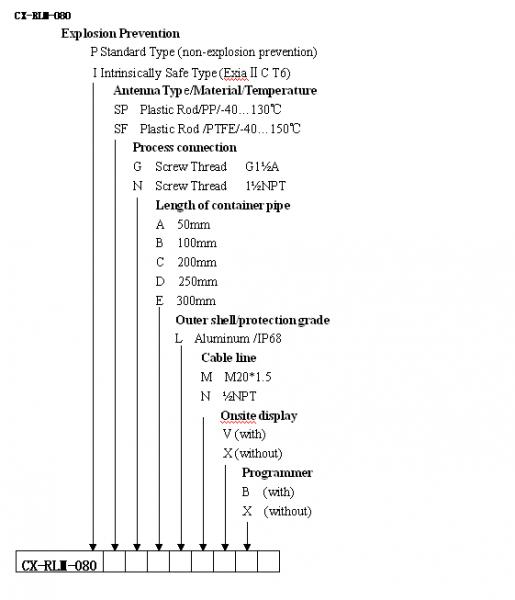

Model selection
