Type：CX-BLM-CS-49H type flat boiler level meter
Illustrate：Flat level meter(also know as level indicator), it is widely used in industrial steam boiler, steam locomotive boiler and storage collector. It is used for indicate level or water level.

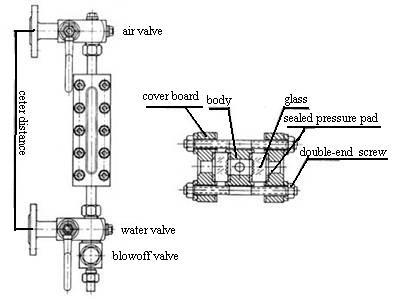

CX-BLM-CS-49H Type Flat Boiler Level Meter
Application
Flat level meter(also know as level indicator), it is widely used in industrial steam boiler, steam locomotive boiler and storage collector. It is used for indicate level or water level.
Main Parameter
| Type | X49H DN25（mm） | 49H DN40（mm） | |
| Nominal pressure | 1.6MPa | 2.5 MPa | 4.0 MPa |
| Test pressure | 2.45 MPa | 3.8 MPa | 6.0 MPa |
| pressure keeping time | 3Min | 3Min | 3Min |
| Medium temperature | t≤205℃ | t≤225℃ | t≤250℃ |
| Installation center distance | 300、350、440（mm） | ||
| View screw height | 165~195（mm） | ||
| Observe distance | 15m | ||
| Medium temperature | t≤250℃ | ||
Common faults and processing method
| Common faults parts | Faults reason | Processing method |
| Valve connection part leakage |
Sealing between valve and body are not well |
Tighten nut or sealed graphite ring |
| Cock graphite sleeve is wear |
Tighten nut; if don’t work, changing new lining |
|
| Main sealed surface leakage |
Sealing gasket fracture or sealing surface have sundry |
Clean sundry， change new pressure pad |
| Strong parts is not tighten | Tighten properly | |
| Display colour code | Transmitting unclear |
Clean the display part, request to closed the valve before clean |

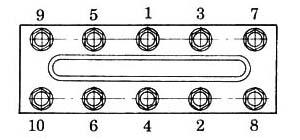

When install prism(or glass board), the pressure should average，tightening screw according to the below picture, until to 20-39.4Nm torsion.
Using and maintain
1, preheat the level meter for about 20-30min before using. When the glass board has certain temperature, then open the valves to let the water or other medium in.
2, Always clean the level meter when using, to avoid dirt blocks pipe and got the wrong level.
3, Please clean sealed surface dirt and scrap iron before changing glass board.
