Type：CX-CL80A/CL80B chlorine controller
Illustrate：Chlorine controller used in drinking water treatment plants, drinking water distribution network, a swimming pool.
CX-CL80A/CL80B Chlorine Controller

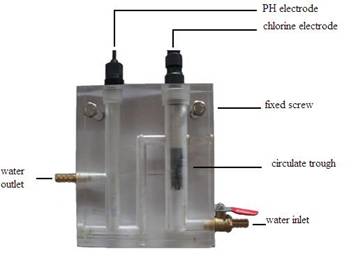

Brief IntroductionMeasurement system consists of CL80A/CL80B controller, chlorine electrode, pH;Electrode (automatic pH compensation) of three parts parts.Electrode contact with the tested solution, instrument displays the value of aqueous solution ofchlorine, pH, temperature and working state.
| Measuring range | 0~ 20.00mg/L ppm |
| Temperature | 0 ~60C |
| Resolution | Chlorine 0.001mg/L Temperature 0.1 |
| The temperature compensation | 0~60C Reference TEMP 25C |
| The pH compensation | 6~9pH |
| Response time | < 2min (90% 20 ) |
| Minimum flow | 15cm3/S constant velocity |
| Stability | <2%F·S every month(normal temperature and normal pressure) |
| Current output | 0~10mA(load resistance 1.5KO),4~20mA(load resistance 750O) |
| Two group of alarm relay | 3A 240VAC 6A 28VDC 120VAC |
| power supply | 220VAC±10%,50±1Hz |
| The dimension | 96×96×130mm |
| The tapping size of electronic unit | 91×91mm |
| Installation way | panel installation |
| The electronic unit weight | 0.6kg |
| Operating conditions | |
| Ambient temperature | 10~ 60 C |
| Relative humidity | no bigger than90% |
| There are no corrosive gas around | |
| There are no other magnetic fields or electromagnetic fields which produce the negative effect except the earth magnetic field | |
