Type：CX-PF-0501 fluorinion combination electrode
Illustrate：It is the indicate electrode that measures fluorine ion concentration in water solution or measures the stable conjugate that can connect to fluorine’s ion concentration
CX-PF-0501 Online Fluorinion Combination Electrode
Brief Introduction1.CX-PF-0501 Online Fluorinion Combination Electrode is pressure proof, anti-pollution
2.Widely used in semiconductor materials, solar energy materials, metallurgical industry, fluorine-containing electroplate industry etc. for waste water treating process control, emission monitoring area.

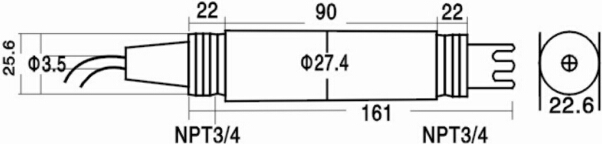

Electrode Dimension Diagram
Main Parameters
| Measuring range | 0.2ug/L-2300mg/L |
| Automatically temperature compensation | 0-99.9C, 25C is the base |
| Tested water sample | 0-9.9C, 0.6Mpa |
| Interfering ion | AL3+ , Fe3+ , OH- etc. |
| pH value range | 5.00~10.00PH |
| blank potential | > 200mV(> 200mV) |
| electrode length | 195mm |
| body material | PPS |
| electrode screw | 3/4 screw(NPT) |
| cable length | 5m |
