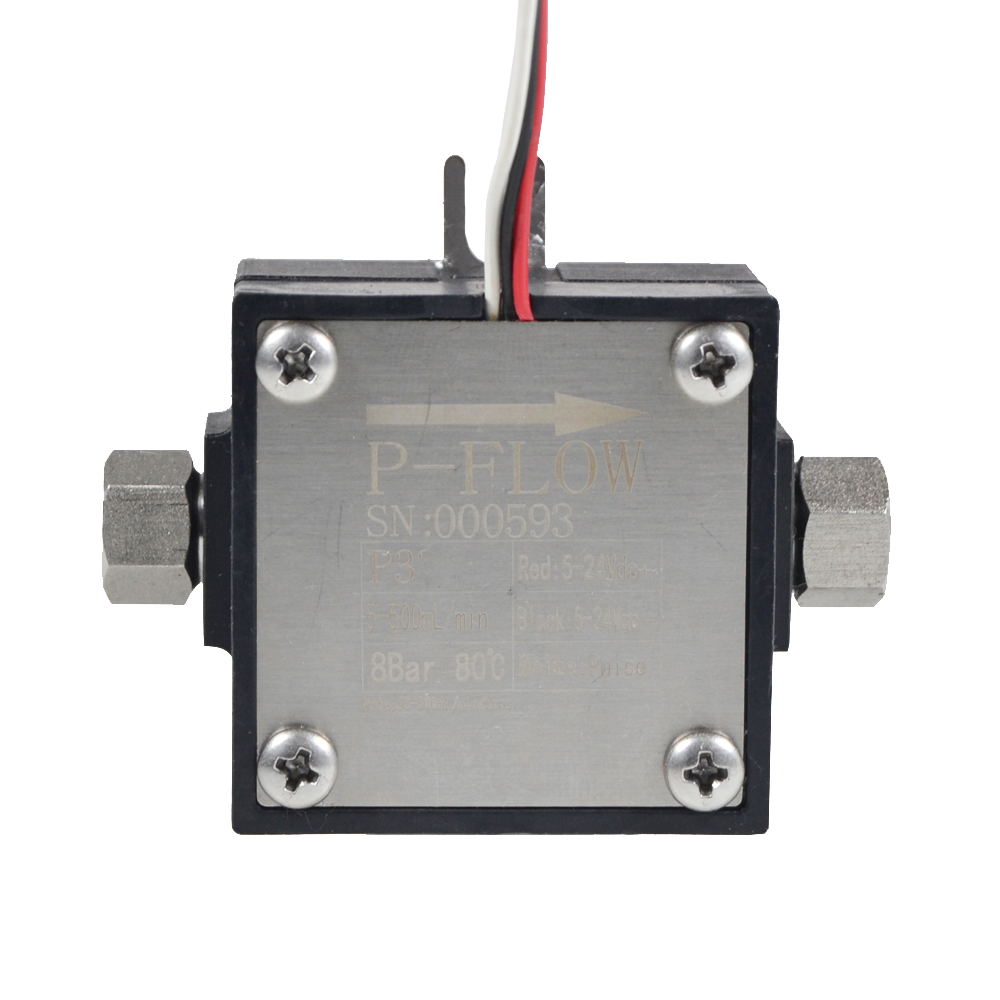

CIXIFM P Series Micro Gear Flow Meter Industrial Chemical Flow Meter
P series micro gear flow meter chemical corrosive liquid flow meter produced by Shanghai Cixi Instrument Co., Ltd. are all made of corrosion-resistant materials, resistant to acids,
alkalis and various solutions, and are suitable
alkalis and various solutions, and are suitable
for accurate metering of various chemical medium and low viscosity that cannot be in contact with metals such as stainless steel. Used in the chemical industry or reactor flow monitoring.
For more please contact winny:sales01@cxflowmeter.com
sales01@cxflowmeter.com
sales01@cxflowmeter.com

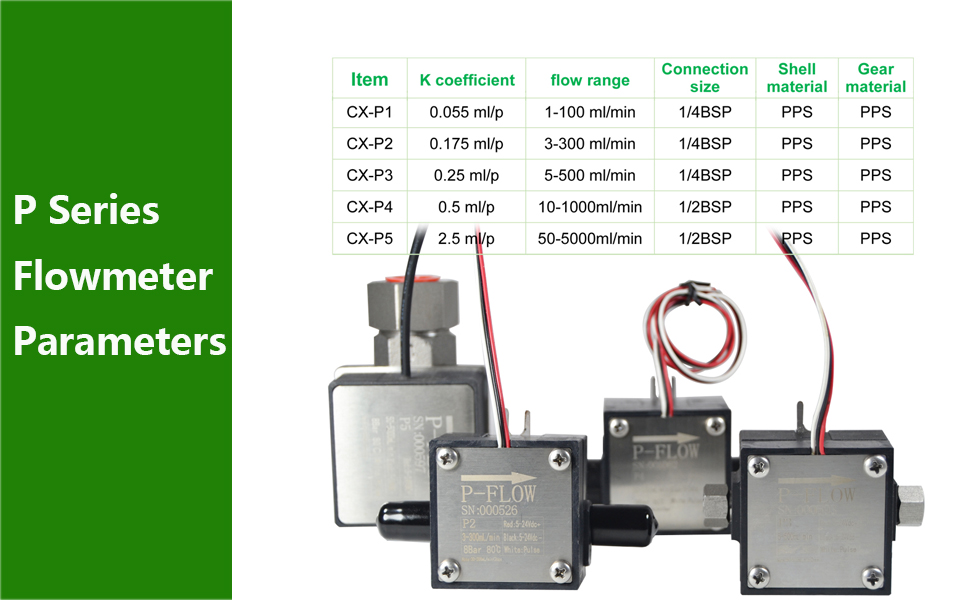

P series gear flow meter
Model: CX-P1 (PS1)
K factor: 0.055 ml/P
Flow range: 1~100 mL/min
Gear material: PPS
Housing material: PPS (PPS+SS316L)
sales01@cxflowmeter.com
Model: CX-P2 (PS2)
K factor: 0.175 ml/P
Flow range: 3~300 mL/min
Gear material: PPS
Housing material: PPS (PPS+SS316L)
Model: CX-P3 (PS3)
K factor: 0.25 ml/P
Flow range: 5~500 mL/min
Gear material: PPS
Housing material: PPS (PPS+SS316L)
Model: CX-P4 (PS4)
K factor: 0.5 ml/P
Flow range: 10~1000 mL/min
Gear material: PPS
Housing material: PPS (PPS+SS316L)
Model: CX-P5 (PS5)
K factor: 2.5 ml/P
Flow range: 50~5000 mL/min
Gear material: PPS
Housing material: PPS (PPS+SS316L)
Product Characteristics
Power supply: DC5~26V
Measuring range: 1:100
Accuracy: 1~0.5 level
Temperature: -30~80℃
Pressure resistance: 8bar
Output: Square wave pulse (Hall sensor)

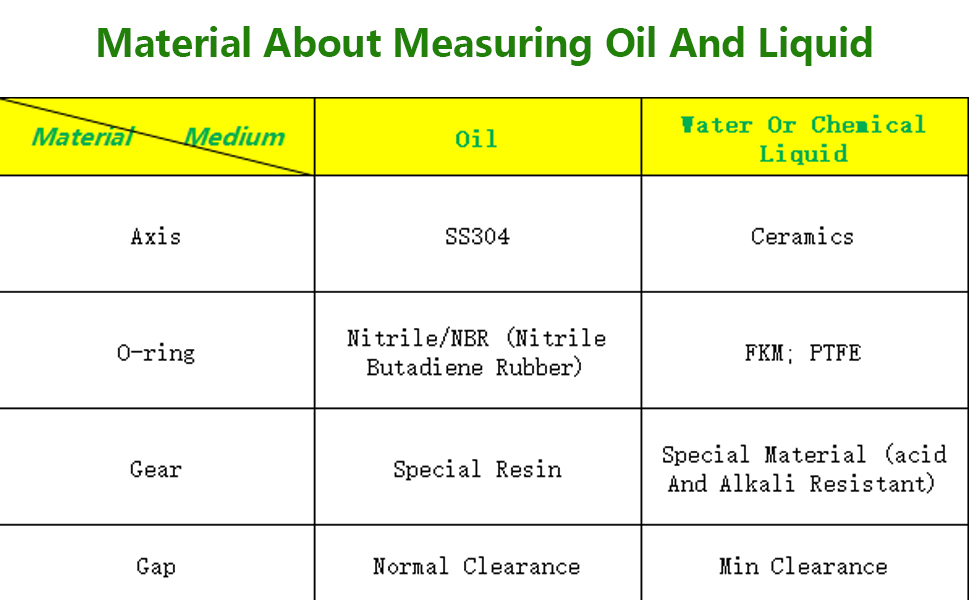

According to different media, the P series flowmeters have produced two types of flowmeters: one is used to measure oil, which is slightly cheaper, and the other is used to measure water,
liquid, chemical liquids, including corrosive liquids flow meter, this price is a bit more expensive, but the overall is a very cost-effective chemical flow meter.
measuring water,liquid
Shaft: Ceramic
O-ring: FKM; PTFE
Gear: special material, acid and alkali resistan
Clearance: Min clearance
for oil measuring
Shaft: SS304
O-ring: Nitrile/NBR (nitrile butadiene rubber)
Gear: Special resin
Clearance: normal clearance
Can be integrated display or with DC8S remote digital display.4-20mA analog output,
Modbus RTU 485 communication, cumulative alarm, instantaneous alarm, etc.

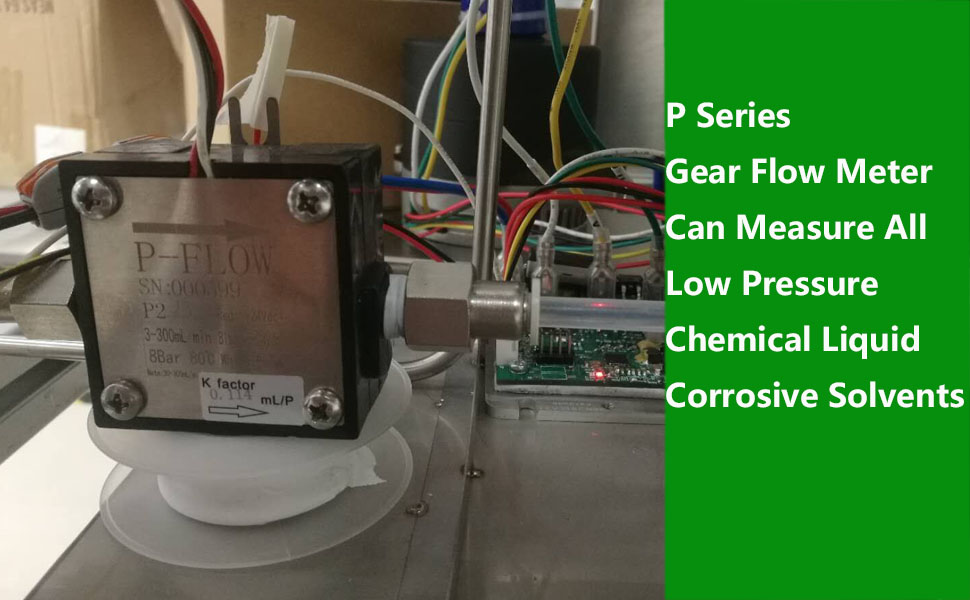

This P series flowmeter is made of corrosion-resistant materials, which can be used to measure the flow of all chemical liquids, acid and alkali reagents, with high accuracy and wide flow range.
Small vibration noise during working, convenient installation.
Small vibration noise during working, convenient installation.
