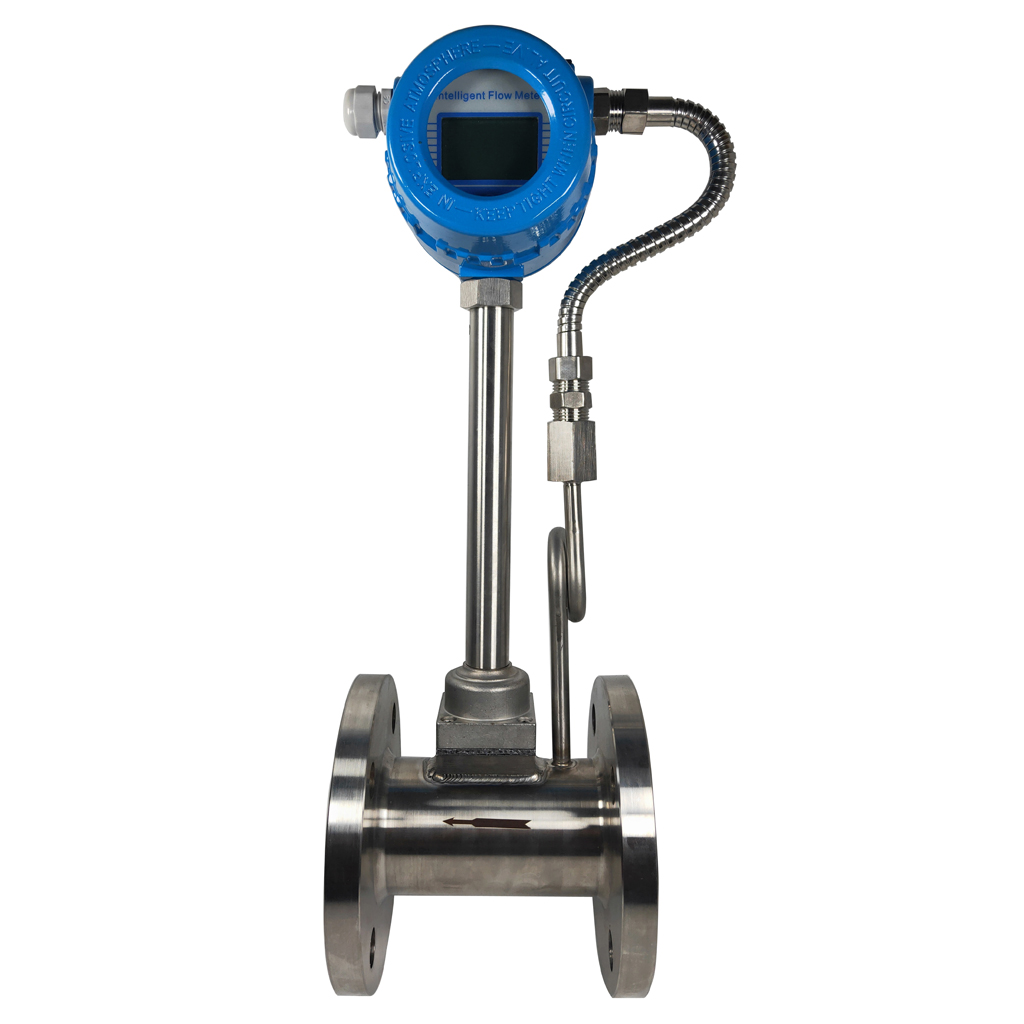

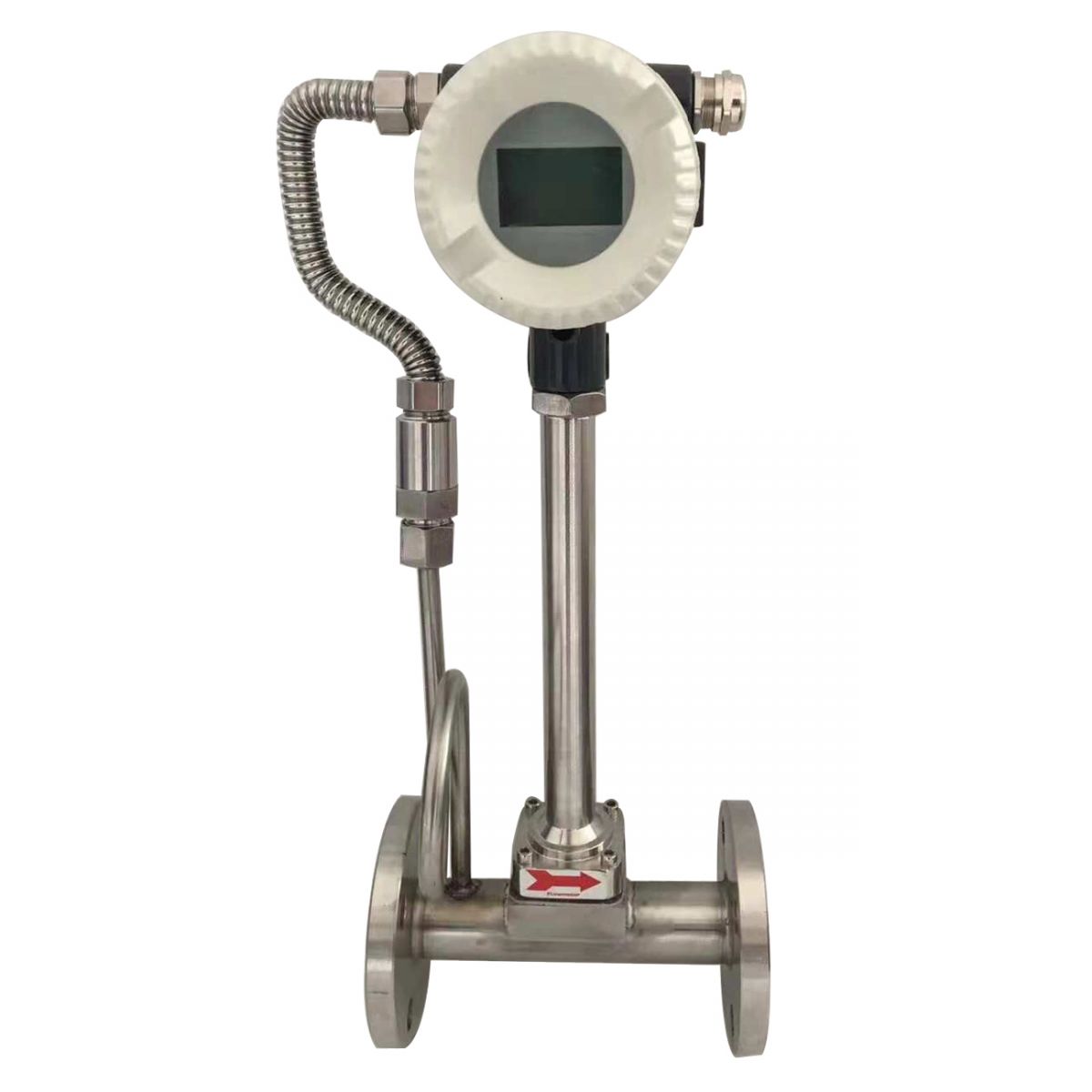

The vortex flow meter adopts piezoelectric stress sensor, which has good reliability, and with isolation, shielding, filtering and other measures,
it overcomes the problems of poor shock resistance and small signal disturbance. It can work in the working temperature range of -20℃~+250℃
It has analog standard signal and digital pulse signal output. It is easy to use with digital systems such as computers. It is a relatively advanced
measuring instrument. Vortex flowmeters are widely used to measure a variety of gases, especially high-temperature gases such as steam, and
are also used to measure general liquids, demineralized water, and pipeline water supply and drainage. The following introduces which liquids the
vortex flow meter is used to measure.

sales01@cxflowmeter.com




1. Flow measurement of various industrial water, including recycled water, waste water, and waste liquid in the production process of various industries
such as chemical industry, light industry, electric power, metallurgy, building materials, and petroleum.



2. For the measurement of non-conductive liquids, electromagnetic flowmeters dominate the flow measurement of conductive liquids, while vortex flowmeters
are very useful in the field of non-conductive liquid flow measurement. The vortex flowmeter with small pipe diameter is more suitable for use in this field.



3. Flow measurement of some low-viscosity oil products, such as gasoline, kerosene, diesel, and heavy oil and residual oil whose viscosity decreases after
heating. It is not suitable for the measurement of liquids containing impurities and bubbles.



4. Water flow measurement in large-diameter pipelines. The full-tube vortex flowmeter is mainly used for small and medium-sized pipe diameters, while the
plug-in vortex flowmeter can be used for large-diameter ≥DN300mm and pipeline flow measurement. It is widely used in urban water pipelines and industrial
water main lines of companies such as chemical industry, electric power, metallurgy, papermaking, and chemical fiber.



5. Measurement of demineralized water in boiler pipes or pipe water in heating pipe network. The temperature range is suitable for the tube, and the
measuring range is wide. It can measure occasions and media with relatively large temperature changes.

Although vortex flowmeters can be used to measure liquids in some specific occasions, there are many types of liquid flowmeters. For conductive liquids,
you can choose Magnetic Flow Meter, general liquids, turbine flow meter, ultrasonics, etc., no matter which flowmeter you choose , All need to understand
the actual working conditions on site.
