Example of air flow meter selection



Today, we received a consultation from a customer. He needs an air flow meter but doesn't know how to choose it. He doesn't know whether to choose a turbine or a vortex street?
Or other types of flow meters are suitable. The on-site pipeline is not easy to modify. He provided the following technical requirements:



1) Working medium: normal temperature air;



2) Diameter: DN80;



3) Measuring range: 250Nm3/h~6000Nm3/h;



4) Working pressure: ~3.5MPa;



5) Material: 316L;



6) Structural accessories: with docking flanges, gaskets and fasteners;



7) Electronic control accessories: local display, remote transmitter, electronic control accessories, cables, etc.;

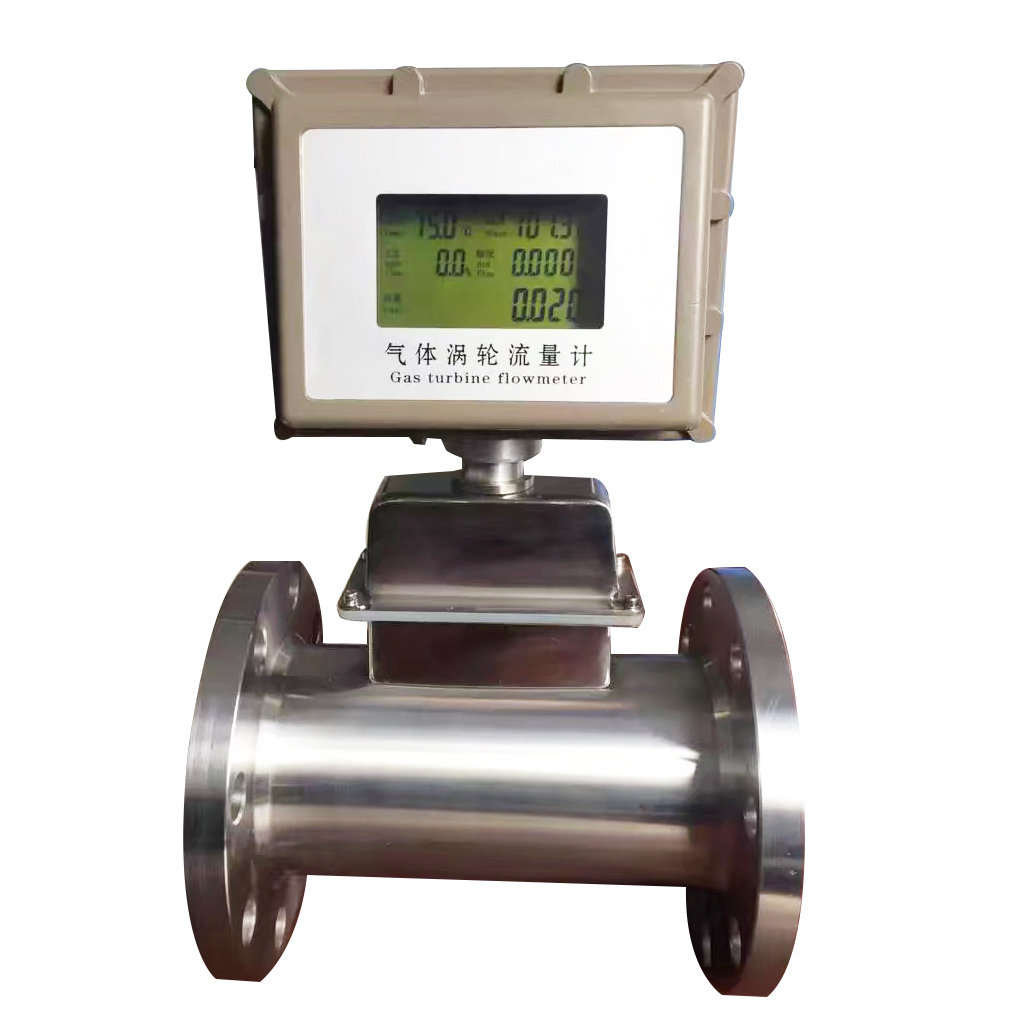

After we converted it to 8-166m³/h, it is recommended to use a DN50/65 caliber gas turbine flow meter, and the customer can match a conversion head by himself.
