Today, a customer inquired about the selection of hot melt adhesive metering pump and provided the following information:

Medium: Hot melt adhesive

Flow rate: 0-100L/H

Temperature: 220-250 ℃

Melting point: 185 ℃

316 material insulation jacket is required

The commonly used flow rate in the system is 30-50L/H

The viscosity has not been provided by the customer yet. Please follow the conventional hot melt adhesive speed first





After a detailed analysis by our technical manager,

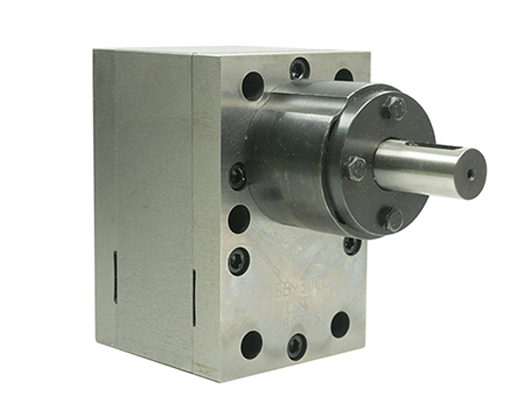

Recommend using the CX-B-31.5CC metering pump for him, here is the parameter information of our gear pump:



Medium: Hot melt adhesive

Speed: 10-65 revolutions per minute (adjustable speed)

Normal displacement: 30-100L/H

Voltage: 380 50HZ

Tightening element: 12.9 high-strength screw

Drive power: 2.2KW

Heating method: electric heating

Heating power: 2KW

Pump body material: High temperature alloy steel

Gear material: High temperature alloy steel

Equipped with a 2.2kw variable frequency motor

Hardened reducer

Universal coupling

Gearbox connector

Supporting P20 control system

PID digital instrument+frequency conversion control mode can automatically control pressure, temperature, and speed to meet the high extrusion needs of users. The system comes standard with pressure, temperature, complete set, outlet and inlet pressure sensors, and high-performance frequency converters.



If you want to learn more about the selection and quotation of hot melt adhesive metering pumps, please contact us, and we will recommend the most suitable precision metering pump for you
