Recommendation for Seawater Desalination Pump: CXHP11 Metering Pump
Customer Requirements Summary
- Medium: Seawater
- Temperature: Normal temperature
- Flow Rate: 120–140 liters per minute
- Pressure: 100 kg/cm² (approximately 10 MPa)
- Function: Seawater desalination
- Additional Information Needed: Pump head + motor price, voltage, and power

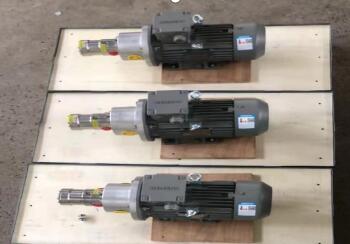

CXHP11 Metering Pump Specifications
| Parameter | Details |
|---|---|
| Medium | Seawater |
| Flow Rate | 120–140 liters per minute (7.2–8.4 m³/h) |
| Temperature | Normal temperature |
| Pressure |
100 kg/cm² (Customer Requirement) Pump Specification: 80 bar (8 MPa) |
| Shell Material | 2205 duplex stainless steel |
| Piston Material | 2507 super duplex stainless steel |
| Typical Speed | 1500 rpm |
| Maximum Flow Rate | 11 m³/h |
| Speed Setting Range | 700–1800 rpm |
| Maximum Outlet Pressure | 80 bar (8 MPa) |
| Power | 30 kW / 6 levels |
| Power Supply | Three-phase 380V, 50 Hz |
Key Considerations
-
Pressure Compatibility:
- The customer requires a pump capable of handling 100 kg/cm² (approximately 10 MPa).
- The CXHP11 pump has a maximum outlet pressure of 80 bar (8 MPa).
-
Recommendation:
- Option 1: Explore the possibility of customizing the pump to meet the 100 kg/cm² requirement.
- Option 2: Use the CXHP11 pump in a multi-stage configuration to achieve the desired pressure.
- Option 3: Consider integrating a booster pump in the system to supplement the pressure.
-
Flow Rate Compatibility:
- The CXHP11 pump can handle a flow rate of 120–140 liters per minute (7.2–8.4 m³/h), which is within its maximum flow rate of 11 m³/h.
- No adjustment needed for flow rate.
-
Material Compatibility:
- The 2205 duplex stainless steel shell and 2507 super duplex stainless steel piston are highly resistant to corrosion in seawater environments, ensuring long-term durability.
-
Power and Voltage:
- The pump operates at 30 kW with a three-phase 380V, 50 Hz power supply, which is standard for industrial applications.
Pricing Information
-
Pump Head + Motor Price:
- Please contact our sales team for a detailed quotation based on your specific requirements and any potential customizations needed to meet the 100 kg/cm² pressure requirement.
-
Contact Information:
- Email: sales01@cxflowmeter.com
- WhatsApp: +86 180 4984 1995
