Core Analysis of Drain Pumps with Oil-Water Sensors and Thermal Switches



I. Technical Parameter Comparison and Selection Criteria



Basic Performance Compatibility

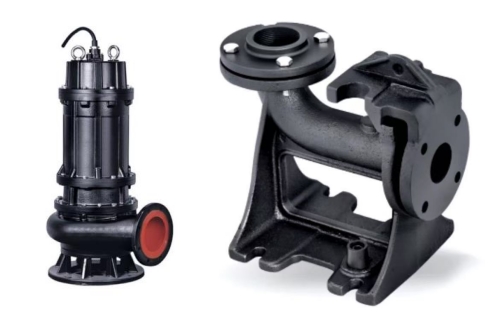

Flow Rate and Head: Both pumps (200W/3300-12-15 and 200WQ250-11-15) offer a maximum flow rate of 490 m³/h and a maximum head of 21 meters, fully meeting the high-flow, medium-head requirements of sewage treatment and are suitable for municipal sewage treatment plants, industrial wastewater treatment, and other applications.



Power and Current: Rated power consumption is 15 kW (26 A/380-400 V) at a 50 Hz frequency, meeting three-phase power supply requirements. The 26 A current is lower than the theoretical value of 15 kW (approximately 28.8 A), leaving a safety margin.



Temperature and Pressure: Supporting liquid temperatures of 0-40°C and a maximum operating pressure of 6 bar, they are suitable for typical sewage temperatures and pipeline pressures. However, they should avoid high temperatures or corrosive media. (For high-temperature sewage treatment, a DG boiler feed pump is recommended.)



Structural and Material Advantages



Vertical single-stage centrifugal design: Compact structure and small footprint, suitable for small pump rooms or submersible installations.



Cast iron casing and impeller: Highly corrosion-resistant, suitable for wastewater containing solid particles, but regular inspection of the impeller for wear is recommended. (For conveying high-hardness particles, a wear-resistant ceramic-coated impeller is recommended.)



IP98 protection rating: Completely dustproof and waterproof, capable of long-term submersible operation, reducing maintenance frequency.



Safety Protection Devices

Oil-water sensor: Real-time monitoring of moisture in the motor seal chamber. Automatically shuts down and issues an alarm if a leak occurs, preventing motor burnout. (Traditional mechanical seal pumps lack this feature and have a failure rate exceeding 30%).



Thermostatic switch: Integrated into the stator winding, it cuts off power when the temperature exceeds the specified limit (e.g., 125°C), preventing motor overheating and damage. (Compared to traditional thermal relays, the response speed is 50% faster.) Fully protected control cabinet: Integrated protection for leakage, overload, short circuit, and phase loss, supports automatic start and stop at the liquid level, reducing manual intervention (a one-control-three/one-control-four solution can manage the rotation of multiple pumps, improving system reliability).



II. Application Scenarios and Selection Recommendations

Municipal Wastewater Treatment Plant

Requirements: High-flow, continuous drainage with anti-clogging and corrosion resistance.

Recommended Model: 200WQ250-11-15 (dry-type motor for easy maintenance) + one-control-four control cabinet (supports alternating operation of four pumps, with automatic switchover in the event of a fault).

Advantages: Dry-type motors provide excellent heat dissipation, suitable for long-term operation; fully protected devices reduce the risk of downtime.

Industrial Wastewater Treatment Plant

Requirements: Treatment of wastewater containing fibers or solid particles with anti-entanglement and easy maintenance.

Recommended Model: LW sewage pump (single-channel impeller, fiber-passing capacity up to five times the pump diameter) + float switch (liquid level control).



Advantages: Non-clogging design reduces manual cleaning frequency; dual-rail coupling installation eliminates the need to enter the sump for maintenance.

Mine Drainage

Requirements: High head, particle resistance, and explosion-proof design are required.

Recommended Model: MD85-67x6 mining pump (for conveying mineral water with particle size ≤ 0.5mm, head up to 402 meters) + explosion-proof control cabinet.

Advantages: Designed specifically for mines, meeting the needs of high-head and small-particle drainage.



III. Cost and Efficiency Optimization Solutions

Energy Efficiency Improvement

Variable Frequency Control: While the current model does not include a variable frequency drive, it can be added later (saving over 30% energy) and is suitable for use in applications with large flow fluctuations (such as rainwater pumping stations).

Pump Rotation: Using a one-control-three/one-control-four control cabinet, pump operation time is balanced and equipment life is extended. Reduced Maintenance Costs

Dry-Type Motor Selection: The 200WQ250-11-15 utilizes a dry-type motor, which simplifies maintenance compared to oil-immersed motors (such as the 200W/3300-12-15), eliminating the need for regular seal oil changes.

Fully Protected Devices: Reduce downtime losses caused by sudden failures, reducing overall maintenance costs by 20%-40%.



IV. Supplier Service Support

Customized Solutions: We offer services such as pump material upgrades (such as stainless steel impellers) and explosion-proof motor selection based on operating conditions.

After-Sales Support: We provide on-site surveys, pump station design, installation and commissioning, and a five-year warranty.

Quick Response: We provide 24-hour technical consultation and troubleshooting to ensure continuous system operation.
