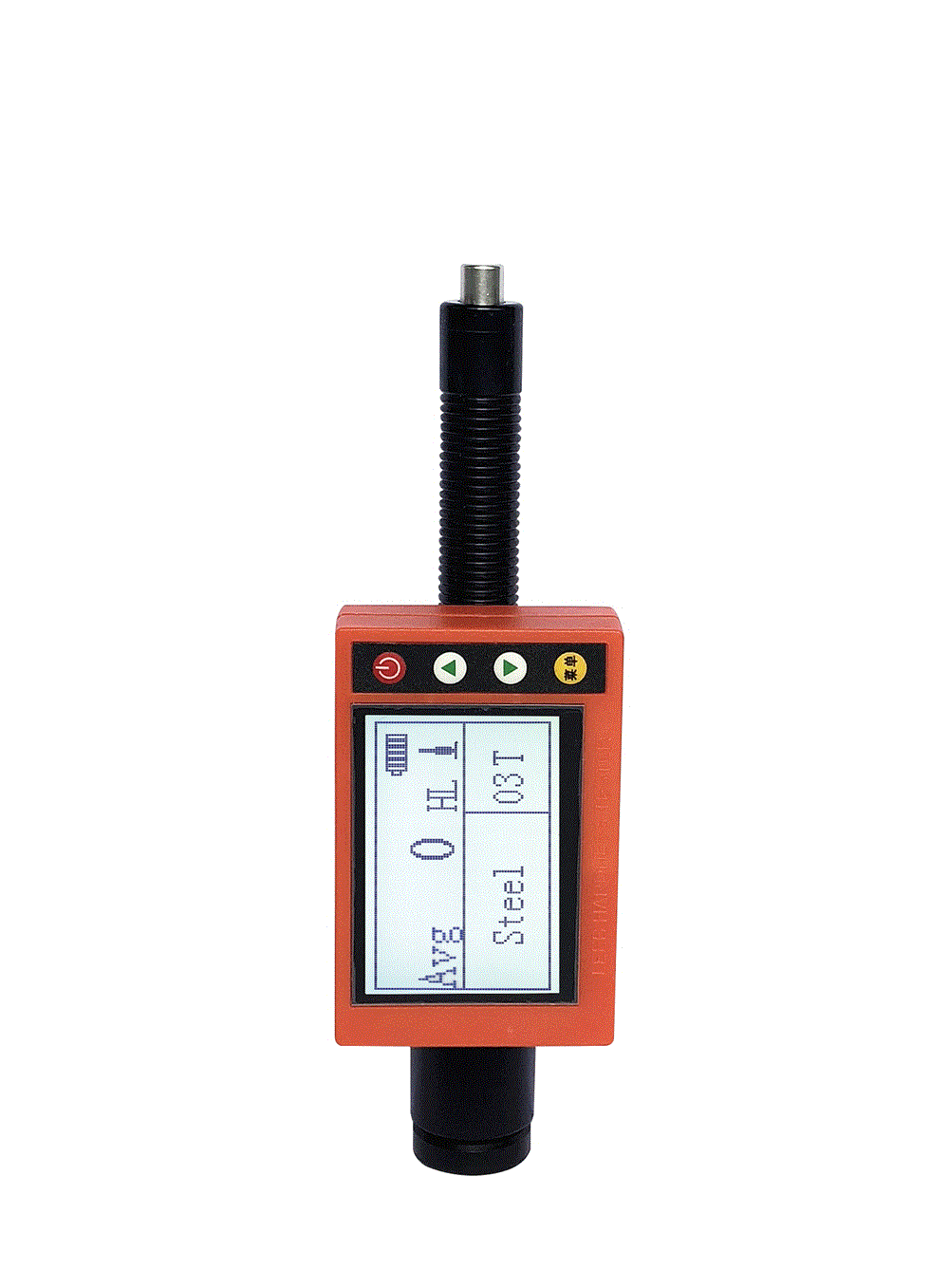

CX-PHT-600,610 Pen type Durometer
Summarize:
   The newest pen type durometer is small volume, light weight, convenient to carry, and measurement is simple.
   12864 graph dot matrix, oversized and superbright display. All angle measurement. D/DL two kinds of impact system that can interconvertible.

Measured material:
Steel and cast steel, alloyed tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminium alloy, pinchbeck alloy(brass), copper-tin alloy(bronze), fine copper, forged steel, roller(only for PHT-600).CX-PHT-600,610 Pen type Durometer
Summarize:
   The newest pen type durometer is small volume, light weight, convenient to carry, and measurement is simple.
   12864 graph dot matrix, oversized and superbright display. All angle measurement. D/DL two kinds of impact system that can interconvertible.

Measured material:
Steel and cast steel, alloyed tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminium alloy, pinchbeck alloy(brass), copper-tin alloy(bronze), fine copper, forged steel, roller(only for PHT-600).
Parameter:

Model	PHT-600	PHT-610
Indication error	±0.3%(HL=800/±2HL)
Hardness value	HL/HRC/HRB/HB/HV/HS/σb（rm）
Indentification impact device type	D type（standard built-in）D-DL two-in-one(optional)
Measuring angle	All-angle
Communication	USB interface, Bluetooth  wireless connect to computer	/
Storage capacity	400pcs storage group,  36000pcs data	4 storage group,  4000pcs data
Statistics	Average value, max. value, min. value, root-mean-square value
Power supply	3.7V Li battery chargeable battery
Volume	148×44×22（mm）
Net weight	110g
Standard	Accord with GB/T 17394-1998，ASTM A956 standard


Measuring range:

Impact device D HLD：170-960 can customized other hardness value that is not section out
Test material/ hardness system	HRC		HRB		HB	HV	HS		HRA		σb(N/mm²)
Steel and cast steel	20.0-67.9		59.6-99.5		80-647	80-940	32.5-99.5		30-88		375-1710
Alloy tool steel	20.5-67.1					80-898					1170-2639
Stainless steel	19.6-62.4		46.5-101.7		85-655	85-802					740-1725
Gray pig iron	21-59		24-100		93-334	90-698
Nodular cast iron	21-60		24-100		131-387	96-724
Cast aluminium			24-85		30-159	75-227
Pinchbeck alloy(brass)			13.5-95.3		40-173
Copper-tin alloy(bronze)			14-100		60-290
Fine copper			14-100		45-315
Forged steel					142-651
roller
Impact device DL HLDL：560-950
Test material/hardness system		HRC		HRB		HB		HV		HS
Steel and cast steel		20.6-68.2		37.0-99.9		81-646		80-950		30.6-96.8
Alloy tool steel		20.6-73.1						73-1184
Nodular cast iron		18.6-72.3				88-669		97-1167
