Type：CX-ULM-ES level transmitter
Illustrate：liquid level measurement range: 5m,7m,10m,15m（Under clean environment, with rigid and smooth objective surfacecorresponding wave beam projected area） Probe blind area: ≤300~800mm (varies from different measure range and sensor,at 25 ℃) accuracy of detection: Better than 0.5% F.S (at times, and the blind process ℃)
CX-ULM-ES Level transmitter

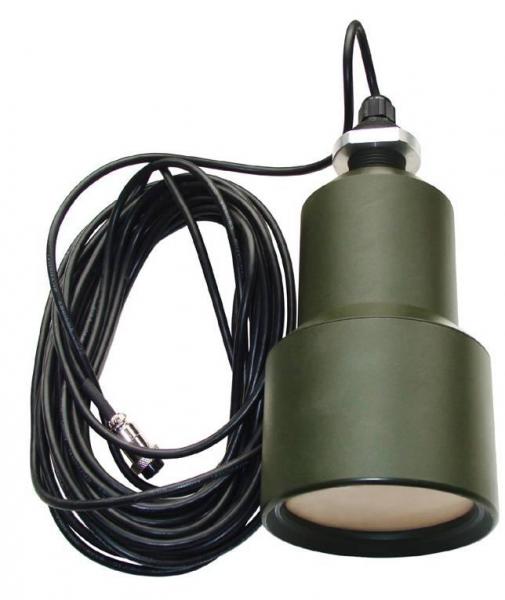

◆The main technical indexes:
liquid level measurement range: 5m,7m,10m,15m（Under clean environment, with rigid
and smooth objective surfacecorresponding wave beam projected area）
Probe blind area: ≤300~800mm (varies from different measure range and sensor,at 25 ℃)
accuracy of detection: Better than 0.5% F.S (at times, and the blind process ℃)
output signal: 4～20mA(two,three, four-wire),0～5V,RS485, switch value ---(optional)
Showing the way: none
Working temperature: 0 ~ + 50 ℃（wider temperature range can be customized）
power supply: DC24V/300mA
Protection level:Sensor IP65（IP66，IP67，IP68 can be customized）
Cable way: water proof connect port, down-lead 0.5cm(default, extra down-lead can be customized)
Mounting model: screwM68×2.0，or sifter clamping
Application environment: constant pressure, NOTexplosion-proof, Non erosive environment

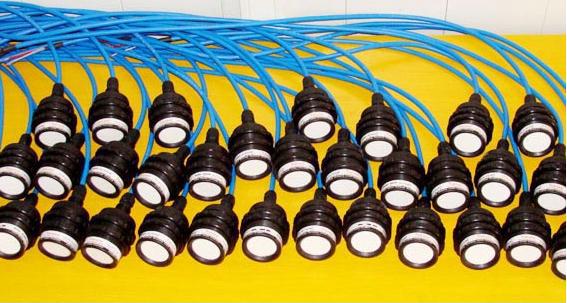

◆The main technical indexes:
liquid level measurement range: 5m,8m（Under clean environment, with rigid and smooth
objective surfacecorresponding wave beam projected area）
Probe blind area: ≤300~350mm (varies from different measure range and sensor,at 25 ℃)
accuracy of detection: Better than 0.5% F.S (at times, and the blind process ℃)
output signal: 4～20mA(hree, four-wire),0～5V,RS485, switch value ---(optional)
Showing the way: none
Working temperature: 0 ~ + 50 ℃（wider temperature range can be customized）
power supply: DC12V/300mA
Protection level:Sensor IP65（IP66，IP67，IP68 can be customized）
Cable way: water proof connect port, down-lead 0.5cm(default, extra down-lead can be customized)
Mounting model: screwM49×1.25，or sifter clamping
Application environment: constant pressure, NOTexplosion-proof, Non erosive environment

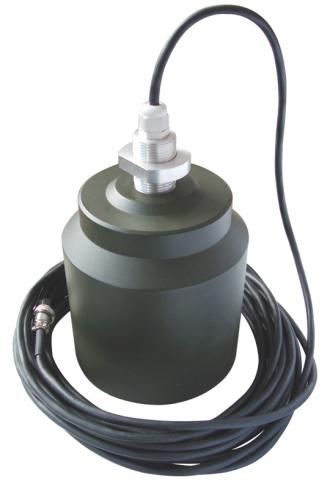

◆The main technical indexes:
liquid level measurement range: 20m,30m,50m（Under clean environment, with rigid
and smooth objective surfacecorresponding wave beam projected area）
Probe blind area: ≤1000~1500mm (varies from different measure range and sensor,at 25 ℃)
accuracy of detection: Better than 0.5% F.S (at times, and the blind process ℃)
output signal: 4～20mA(hree, four-wire),0～5V,RS485, switch value ---(optional)
Showing the way: none
Working temperature: 0 ~ + 50 ℃（wider temperature range can be customized）
power supply: DC24V/300mA
Protection level:Sensor IP65（IP66，IP67，IP68 can be customized）
Cable way: water proof connect port, down-lead 0.5cm(default, extra down-lead can be customized)
Mounting model: screw
Application environment: constant pressure, NOTexplosion-proof, Non erosive environment
