Type：CX-ULM-GA ultrasonic level meter
Illustrate：CX-ULM-GA ultrasonic level meter applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input.
CX-ULM-GA ultrasonic level meter
Brief introduction
CX-ULM-GA ultrasonic level meter applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input. You can select analog, switch or RS485 serial signal output. Owning the advantage that there is no need to contact the measured meter, it could supply more precise and longer work life.
Features
High precise Non-invasive
Strong anti-interference
Automatic temperature compensation
Manual setting blind area to shield nearly interfering signal
Selectable output way
Applications
Proximity Detection
Robot range finder
Sedimentation pool
Coal washing process
Obstacle detection, collision avoidance
Wastewater treatment: sludge thickener, secondary clarifier
Specification
Sense range :0.3~5 m, 0.3~8 m, 0.5~10m blind area :<0.3m
Emission angle :12° display resolution :1mm
Precision :±0.3%×full range
Temperature compensation:automatically
Frequency :20 KHz~43.0KHz
Display :LED
Onsite setting :press button
Calibration :factory /onsite calibration
Output:4~20mA(others optional)
Load impedance >300Ω;0~5V;1~5
digital output :RS485(Modbus) two NPN switches
Work voltage : DC12—30V or AC220V
Power consumption <1.5W

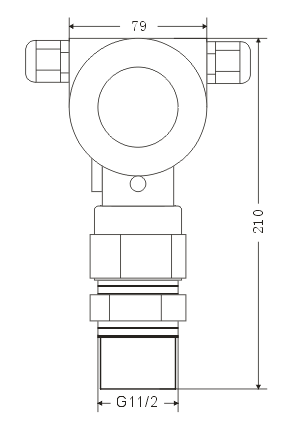

Dimension :Φ79mm×210mm× G1 1/2 pipe screw (with Gong rings )
Material: aluminum for shell, PP for transducer
Fix model: out straight screw G1 1/2 pipe screw or Φ47mm round hole
Key :3 sensitive button A.B.C
Weight :900g
Protection degree: IP65
Humidity: 0 to 95%
Ambient temperature:-10℃~60℃
Ambient pressure: normal condition
