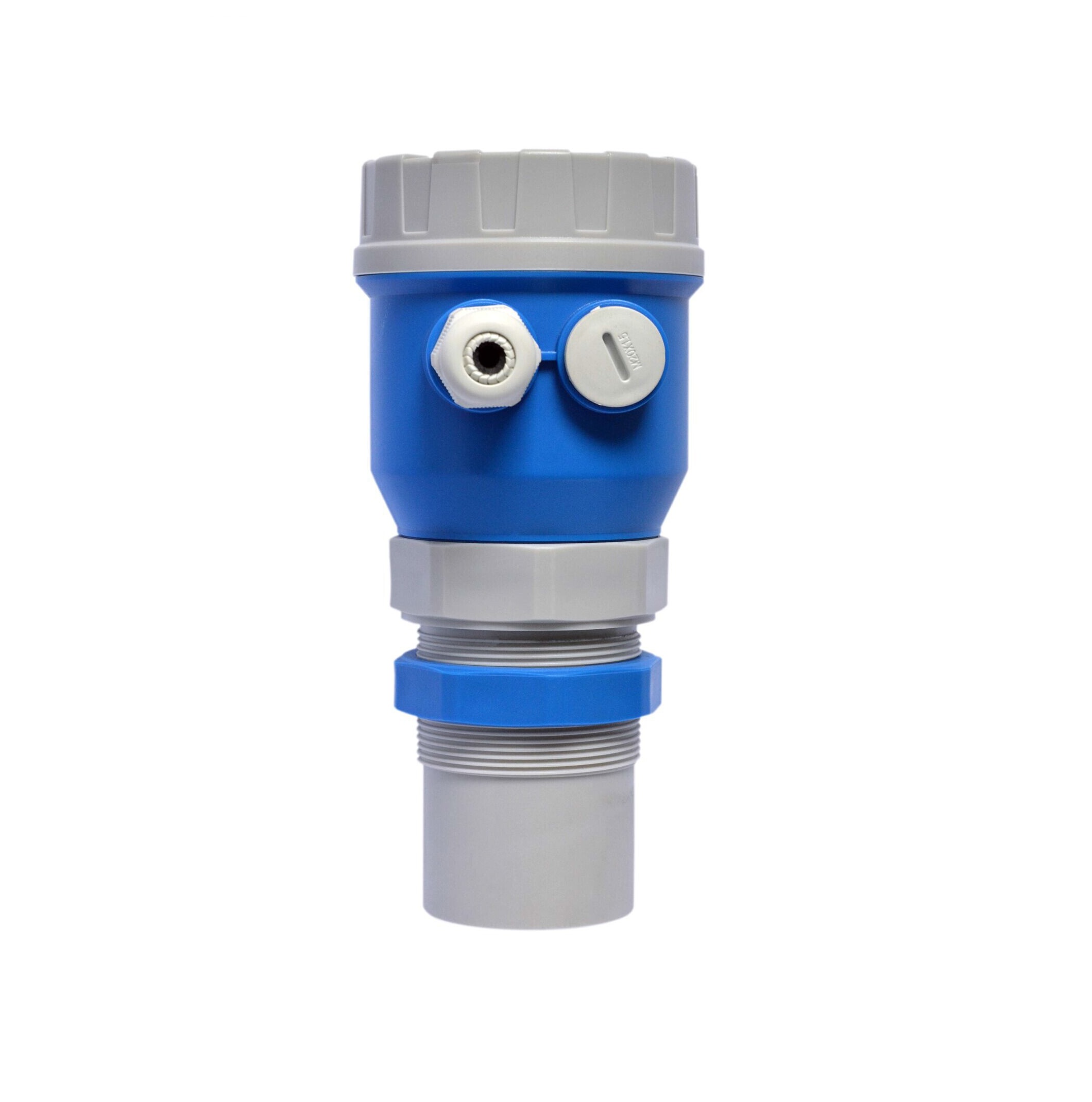

Type：CX-ULM-A Ultrasonic level meter
Illustrate：Ultrasonic level meter 1)ISO,CE,SGS certificates 2)More 30 year technology accumulation 3)More 80% meters for export 4)9 consecutive years as gold supplier for export 5)benchmarking enterprises in Auto control&process instrument
CX-ULM-A ultrasonic level meter, taking the advantages of various many level meter, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.
More choices for ultrasonic level meter depend on your requirement, as bellowing:
● 3 NPN output
● 2 relay output
● Voltage output
● RS485output connect with PC
● Explosion-proof
III. Specifications for ultrasonic level meter
Range: 5. 8. 10. 12. 15m
Blind zone: < 0.4-0.5m（ different for range）
Measure error: 0.25%F.S
Display: LED or LCD
Display resolution: 1mm
Frequency: 20~350KHz
Power: 12-24VDC
Power consumption: <1.5W
Output (optional): 4~20mA RL>600Ω(standard),1 ~5V\1 ~10V ,RS485

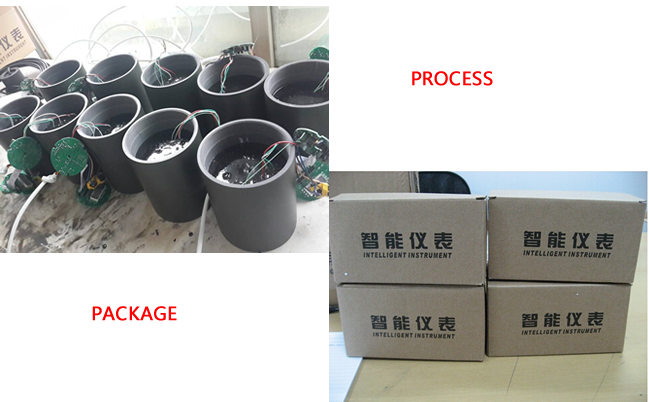

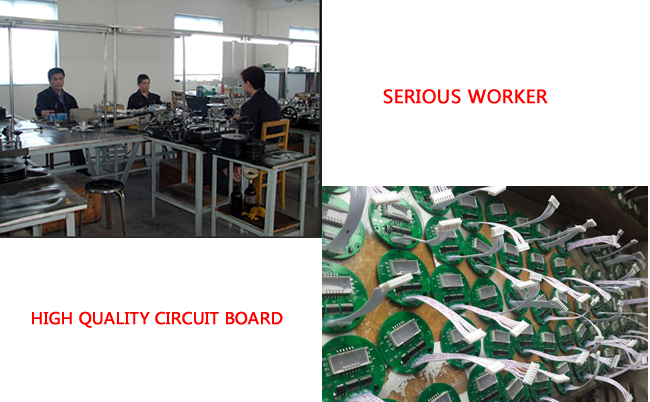

This is factory photos for ultrasonic level meter.

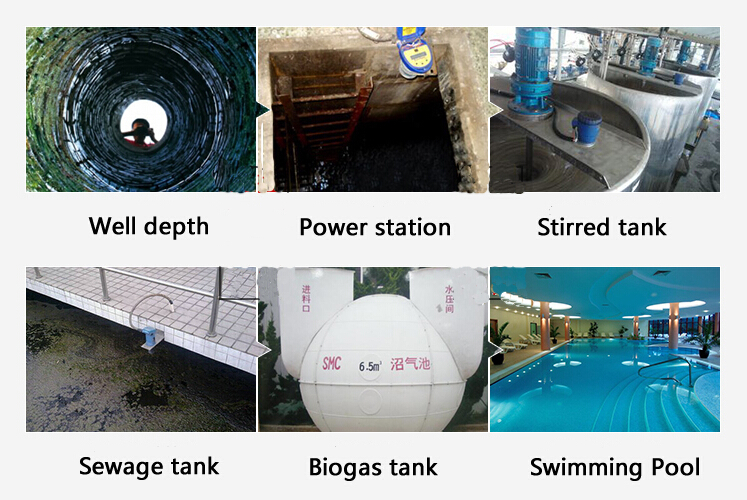

Below is typical working conditions for Ultrasonic level meter
Water & Wastewater,Petrochemical Industry,Power , Semiconductor,Food & Beverage,Alternative Energy

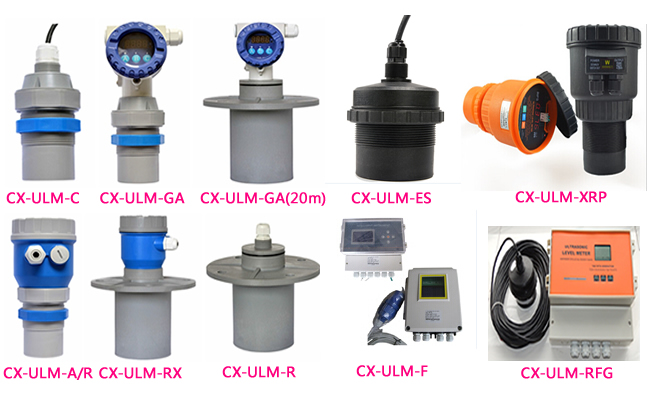

This is related Ultrasonic level meter
II. Characteristics for ultrasonic level meter
● DC12-24V wide work voltage
● Backup and recovery parameter set
● Free adjustment of the range of analog output
● Set a filter value to remove
● Custom serial port data format
● Optional increment/difference distance measurement to measure air space or liquid level
● 1-15 transmitted pulse intensity depending on working conditions
● DC12-24V wide work voltage
● Backup and recovery parameter set
● Free adjustment of the range of analog output
● Set a filter value to remove
● Custom serial port data format
● Optional increment/difference distance measurement to measure air space or liquid level
● 1-15 transmitted pulse intensity depending on working conditions
More choices for ultrasonic level meter depend on your requirement, as bellowing:
● 3 NPN output
● 2 relay output
● Voltage output
● RS485output connect with PC
● Explosion-proof
III. Specifications for ultrasonic level meter
Range: 5. 8. 10. 12. 15m
Blind zone: < 0.4-0.5m（ different for range）
Measure error: 0.25%F.S
Display: LED or LCD
Display resolution: 1mm
Frequency: 20~350KHz
Power: 12-24VDC
Power consumption: <1.5W
Output (optional): 4~20mA RL>600Ω(standard),1 ~5V\1 ~10V ,RS485
This is factory photos for ultrasonic level meter.
Below is typical working conditions for Ultrasonic level meter
Water & Wastewater,Petrochemical Industry,Power , Semiconductor,Food & Beverage,Alternative Energy
This is related Ultrasonic level meter
