Type：CX-CMFI coriolis mass flow meter

Illustrate：1) accuracy can up to 0.1% 2) ISO,CE,SGS standard for exporting 3) It can display current,total,temperature and density. 4) 9 consecutive years as gold supplier for export 5) More 80% meters for export 6) Explosion-proof certificate and anti-vibration

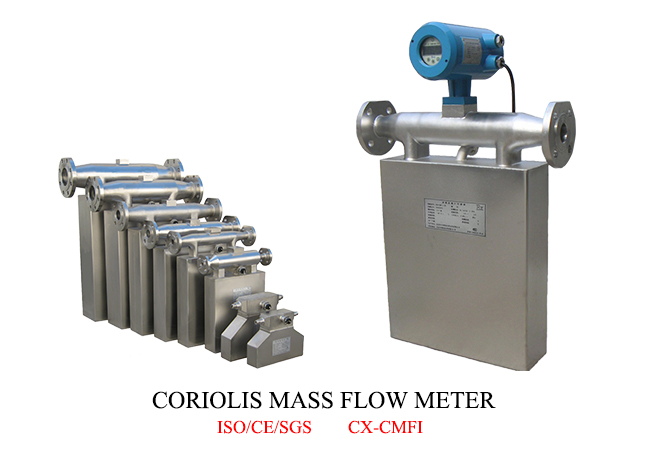

CX-CMFI Coriolis mass flow meter with ISO,CE,SGS

Brief instruction for our coriolis mass flow meter
1)Coriolis Mass Flow Meter are the leading meters for precision flow measurement.
2) the meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
3)The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries and without the need for additional equipment, manual calculations, or estimations.
4)The meters are designed for unsurpassed performance in even the harshest operating environments.
5)They have no moving parts, and any special mounting or flow conditioning requirements. 6)Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.
7)The Coriolis Mass Flow Meter carry hazardous area approval for P. R. China.

Principles Of Coriolis Mass Flow Meter

The structure of CX-CMFI Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.

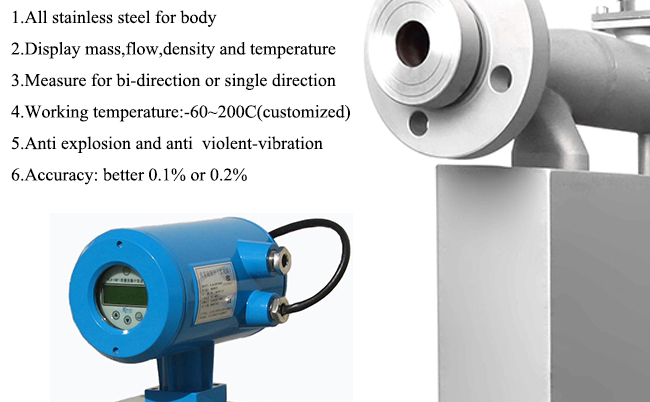

Advantages of Coriolis Mass Flow Meter
1) accuracy can up to 0.1%

2) ISO,CE,SGS standard for exporting

3) It can display current,total,temperature and density.

4) 9 consecutive years as gold supplier for export

5) More 80% meters for export

6) Explosion-proof certificate and anti-vibration

Technical Specifications Of coriolis mass flow meter

Mass flow accuracy	±[0.2% or 0.1&+(zero stability /flow rate×100%)
Mass flow repeatability	±(1/2) ×[0.2% +(zero stability /flow rate×100%)
Density range	0.2 g/cm3~3.5g/cm3
Density accuracy	±0.002g/cm3
Temperature range	-60C~+200C
Temperature accuracy	±1C
Output of current loop	4mA~20mA
Output of frequency/pulse	0Hz~10kHz
Contactor capacity of a Batch Control relay	24V/0.1A
Explosion-proof	Essential safety:Exib[ib]IIBT4 Composite:Exdib[ib]IIBT4
Contactor form	normal open
Environmental Specifications
Temperature range of fluid	-40C~+200C
Environmental temperature range	0C~+40C
Environmental humidity	≤90% RH, non condensation
Atmospheric pressure range	86kPa~106kPa
Power supply of transmitters	Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V

Specs	Line Size	Range	Calibration Range	Max. Pressure	Zero Stability	Velocity
Specs	(mm)	(t/h)	(t/h)	(MPa)	(t/hr)	(h m/t s)
DN1	1	0~0.04	0.004~0.04	30.0	0.000008	353.7
DN3	3	0~0.35	0.035~0.35	30.0	0.000067	39.3
DN6	6	0~0.7	0.07~0.7	30.0	0.00016	19.65
DN10	10	0~1.2	0.12~1.2	30.0	0.0002	4.912
DN15	15	0~6.4	0.64~6.4	4.0	0.0011	2.183
DN25	25	0~16	1.6~16	4.0	0.002	0.902
DN40	40	0~40	4~40	4.0	0.003	0.334
DN50	50	0~65	6.5~65	4.0	0.006	0.197
DN80	80	0~160	16~160	2.5	0.01	0.0873
DN100	100	0~250	25~250	2.5	0.015	0.0544
DN150	150	0~550	55~550	2.5	0.03	0.0239

Explosion-proof Identification Code
Teble of Explosion-proof identification code for coriolis mass flow meter

Form of Explosion-proof	Identification Code
Essential safety	Exib[ib]IIBT4
Composite	Exdib[ib]IIBT4

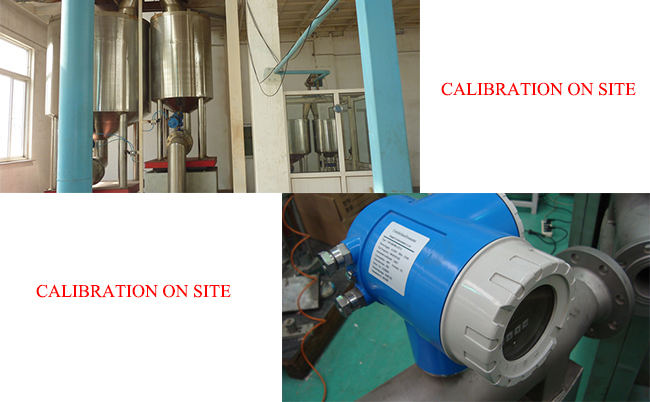

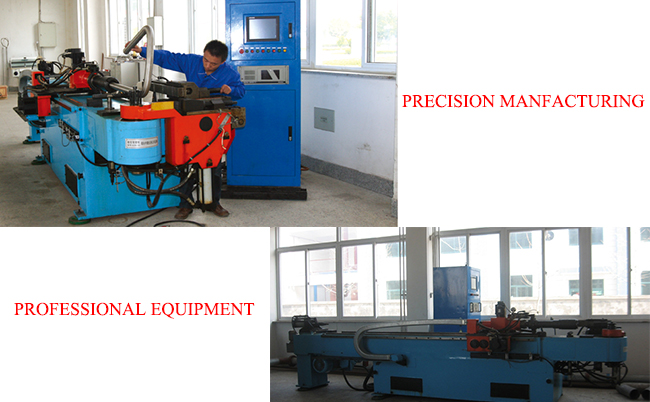

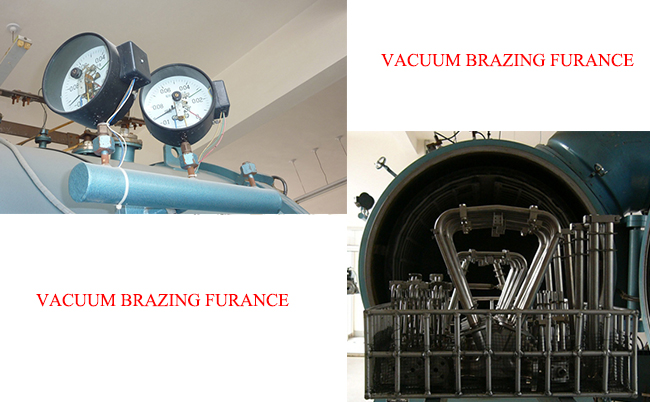

This is our factory photos for coriolis mass flow meter

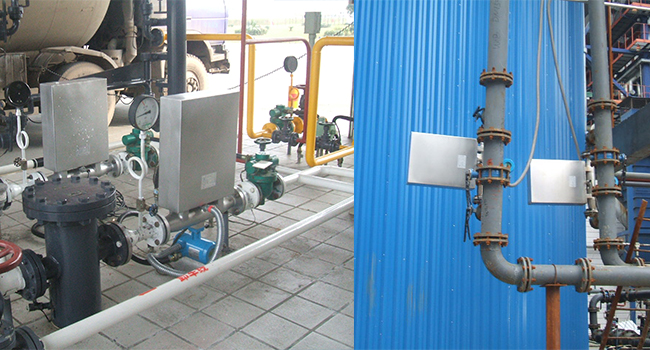

This is installation samples for our coriolis mass flow meter

This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license

This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
