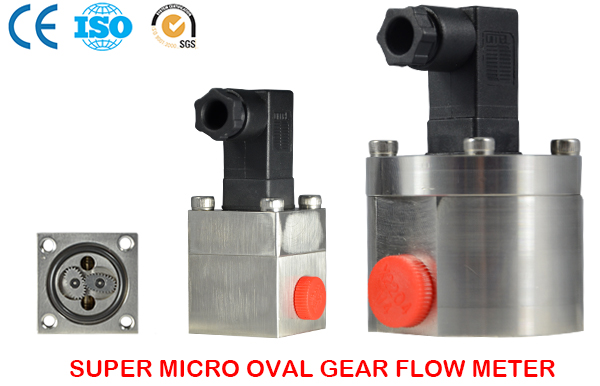

Type：CX-M Micro Oval Gear Flow Meter

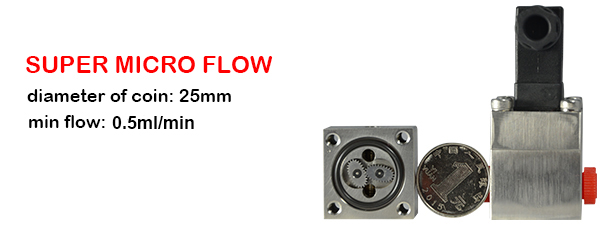

Illustrate：1)min flow:0.5ml/min 2)Siemens CNC machining center 3)2 national patent technology 4)More 30 years’ technology accumulation 5)9 consecutive years as gold supplier for export
Micro oval gear flow meter provide precise volumetric flow measurement of clean liquids found in a broad range of industries including automotive, aviation, mining, power,paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity fed.
Why Choose us ?
Engineers’ team is from Siemens
Siemens CNC machining center
2 national patent technology
More 30 years’ technology accumulation
9 consecutive years as gold supplier for export
Accuracy is higher 40% than counterparts
Range ration is 3~5 times than counterparts
ISO,CE,SGS certificate
Max pulse ratio : 40000 P/L
Max working pressure: 1000bar
Gear and shaft can be changed by yourself
Chinese Academy of Sciences Supplier
benchmarking enterprises in Auto control&process instrument.
Mainly using conditions for Micro Oval Gear Flow Meter
| hydraulic system | precision dosing | 2 and 3 component application |
| process control | open/closed loop control | corrosive chemical dispensing |
| water treatment | additive injection | automobile industry |
| system monitoring | laundry chemical | plastic technology |
| print process | chemical batching | chemical packaging and blending |
| ratio control | consumption measurement | oil metering |
| metering plant | hydraulic test stand | batching control |
| lacquering plant | 2 component plant | flow rate measurement |
| dosing | Odorisation | closed-loop management |
Mainly medium for Micro Oval Gear Flow Meter
| water | gum | chemicals | fluid |
| oil | dyes | liquid | adbrasive adhesive |
| grease | petrochemicals | isocyanate | two-component mixers |
| paints | adhesive | ink | waterbased liquid |
| skydrol | brake fluid | hydraulic oil | sealant |
| gear oil | low viscosity | lubracating | methylbenzene |
| Diesel | Methanol | methyl alcohol | medium viscosity |
| polyol | high viscosity | offset ink | Toluene |
| lacquer | low lubricity | resin | Pharmaceuticals |
| solvent | cavity wax | wax | clear lacquer |
| glycol | glycerin | sodium hydroxide | caustic soda |
| ethylene | diethylene | triethylene | propylene |
| corn oil | cocoanut oil | molasses | bhylene |
| palm oil | olive oil | lard oil | cotton oil |
| soy bean oil | rosin oil | rape seed oil | dimethylthylsufid DMS |
| additive | syrup | sugar | electrohydrodynamic |
| liquefied gas | perfume | aromatic substance | pharmaceutical |
| peanut oil | fluid food | thioether | tetrahydrothiophen THT |
| acryiat-composite | Thiol | mercaptan | mercaptan-composite |

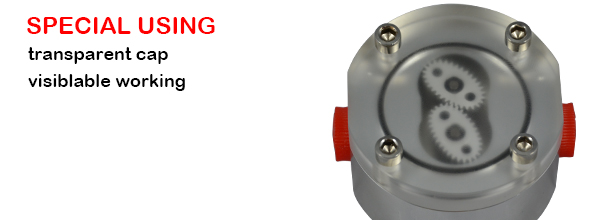

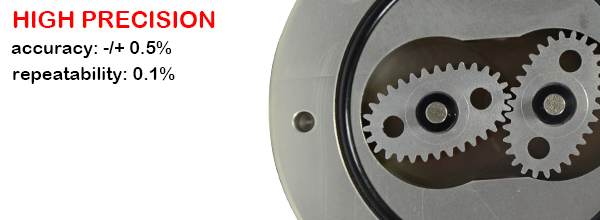

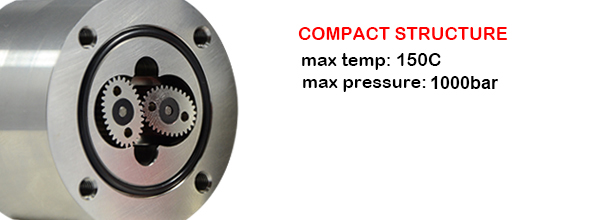

PERFECT UNDER DETAILS

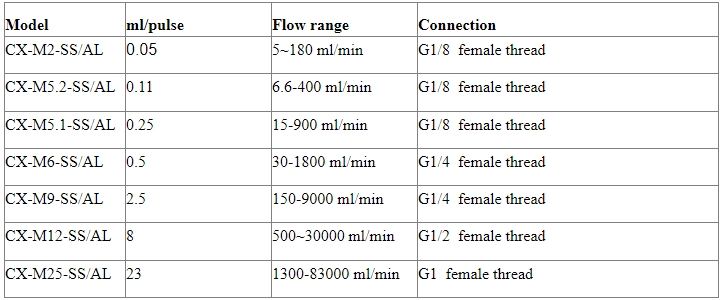

Basic parameters for Micro Oval Gear Flow Meter
| Accuracy | 0.5% or 0.3%, |
| Temperature | -30~80°C(customized) |
| Pressure | 32bar(customized) |
| Output | square-wave pulse |
| Supply | 4-26VDC |

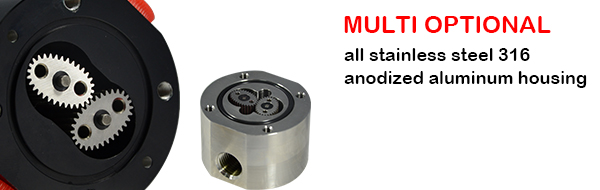

| Material | chamber:SS316L or anodized aluminum |
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
