Type：CX-WUFM-TDS-100F1 Wall mounted ultrasonic flow meter
Illustrate：1) DN15~DN6000 wall mounted ultrasonic flow meter 2) ISO,CE,SGS certificates for export 3) More 80% meters for export 4) 9 consecutive years as gold supplier for export

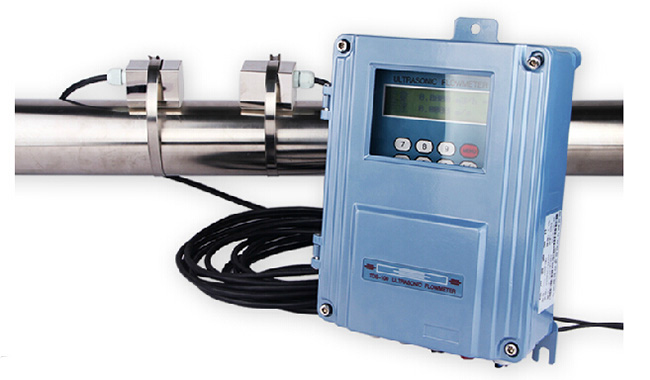

CX-WUFM-TDS-100F1 Wall Mounted Ultrasonic Flow Meter
This is brief introduction for wall-mounted ultrasonic flow meter
1.transducers include clamp-on type,insertion type,in-line type.
2.These series products have gained the best sales volume in our company,and are the favorable products in future
3.applied to measure on-line differents liquids in industry spot.
6. More 80% meters for export
Below is mainly features for wall-mounted ultrasonic flow meter.
1.Repeatability better than 0.2%.accuracy:better than 1%
2.Display:2*20 backlit LCD(Chinese and English optional)
3.Operating power: AC 85—264V or isolation DC 8-36VDC
4.Transducer: clamp-on type,insertion type,in-line type
5.Protection:mainframe:IP65, transducer:IP:68
6.signal output: one channel standard isolation RS485 output;
7.One channel isolation 4-20mA or 0-20mA active output;
8.One channel OCT output(programmed between the pulse width(6-1000ms),default before leaving factory (200ms)
9.One channel isolation relay output,with positive ,negative,net accumulation pulses and different alarm signals.
10.Input:two channel three wire system PT100 platinum resistor input loop,to make heat meter has the function of displaying heat quantity. Three channel 4-20mA input optional,accuracy:0.1%,has the ability to 11.input the signals of pressure, liquid level, temperature and so on.
it can display calory by heat module

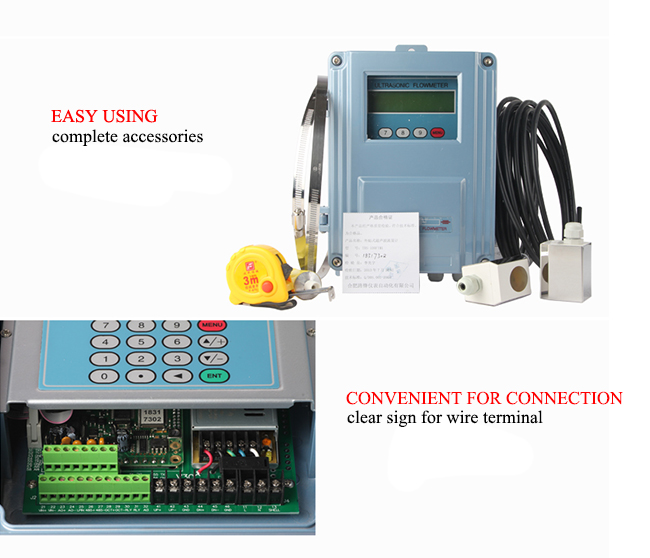

This is the mainly component for handheld ultrasonic flow meter.

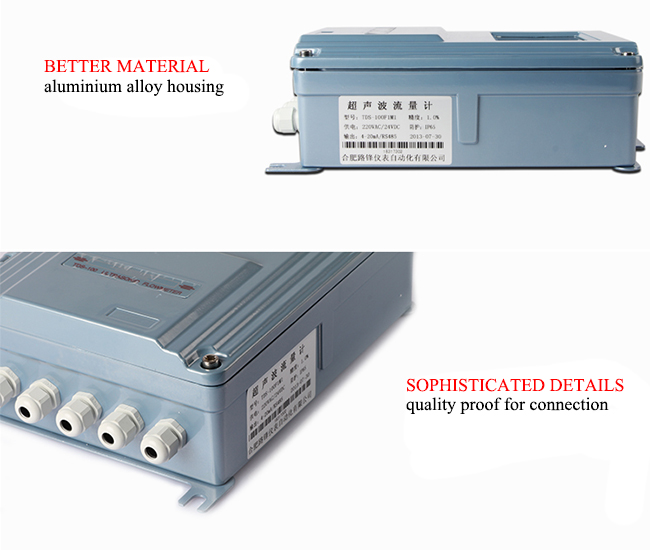

We do Best in every details to produce Best wall mounted ultrasonic flow meter.

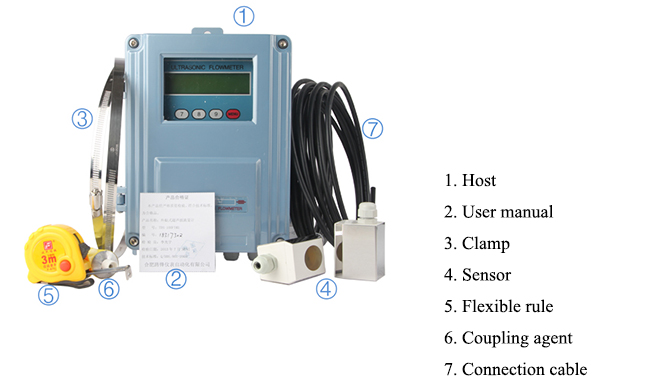

This is cable to connect transmitter with sensor for wall mounted ultrasonic flow meter
This is various sensors and support for wall mounted ultrasonic flow meter.
|
Data |
S1Z |
M1Z |
S1 |
M1 |
L1 |
S1H |
M1H |
|
Pipe size |
15-100 |
50-700 |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
Aluminum Alloy |
ABS |
Special material for hi-temp |
||||
|
Frequency |
1MHz |
||||||
|
Installation |
V(N,W)flange |
V,Zflange |
V(N,W)flange |
V,Zflange |
Zflange |
V(N,W)Flange |
V,Z flange |
|
Calibration |
Calibrated together with flowmeter |
||||||
|
Magnetic |
yes |
no |
|||||
|
Temperature |
0°C-70°C |
0°C-160°C |
|||||
|
IP |
IP65 |
||||||
|
Outsize |
200×25×25 |
280×40×40 |
45×30×30 |
60×45×45 |
80×70×55 |
90×85×24 |
90×82×29 |
|
WT(g/pair) |
250 |
1080 |
75 |
250 |
650 |
94 |
150 |
|
Medium |
Water,sea water,sewage,Alcohol,oil etc |
||||||
|
Turbidity |
≤10000ppm with little air bubble |
||||||
|
Pipe |
Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc. |
||||||
|
Pipe inner |
Rubber,Slurry,PP,PS,bakelite, PTFE |
||||||
|
Signal cable |
standard:5M×2,optinal:10M×2 or 15M×2... |
||||||

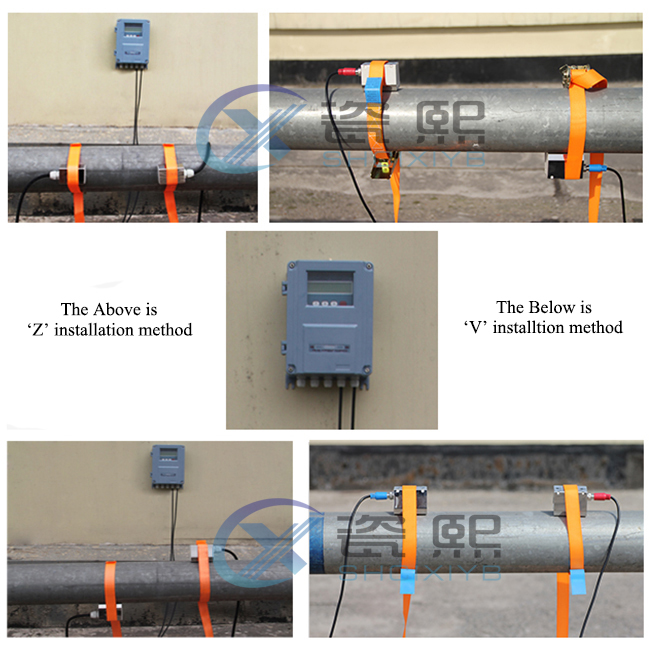

Below is installation sample of portable ultrasonic flow meter for your reference.
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
