CX-PG-SYFX-100/150B
All Stainless Steel Explosion Proof
Electric Contact Pressure Gauge
Ⅰ. Application
This instrument can use in the site that is with explosive mixture, used for measuring the copper and copper alloy, common carbon steel and other non-corrosive of crystals, non-solidification of medium’s pressure (negative pressure). Can use together with the relevant explosion-proof property electric element via contact device. It has a variety of function to measured medium pressure, such as automatic control, alarm, signal remote etc.
Note: Suitable for measuring the medium: nitric acid, acetic acid and some of organic acid, inorganic acid or other alkali’s gas, liquid or steam’s pressure or vacuum that does not have corrosive effect on 1C18Ni9Ti Measuring the corrosive medium, crystallization and coagulability medium, should use acid proof, corrosion proof or diaphragm explosion proof electric contact pressure gauge.

Ⅱ. Basic Parameter
1. Technical data

Instrument Name	Measuring Range	Accuracy	Contact Parameter
explosion proof electric contact pressure gauge	0 ~ 60 Mpa	1.5%	rated voltage AC380V DC220V rated current  1A contact power  10VA
explosion proof electric contact vacuum gauge	-0.1~ 0 Mpa
explosion proof electric contact pressure vacuum gauge	-0.1~ 2.4Mpa
magnetic assist type explosion  proof electric contact pressure gauge	0 ~ 60 Mpa -0.1~ 0 Mpa -0.1~ 2.4Mpa		contact power  30VA
explosion proof electric contact pressure gauge	0~10~60Kpa	2.5%	contact power 10VA
digital explosion proof electric contact pressure gauge	0~10~600Kpa 0～100Mpa -0.1～ 0 Mpa -0.1～2.4Mpa	0. 5% 0.25%	contact power 5A（AC250V）

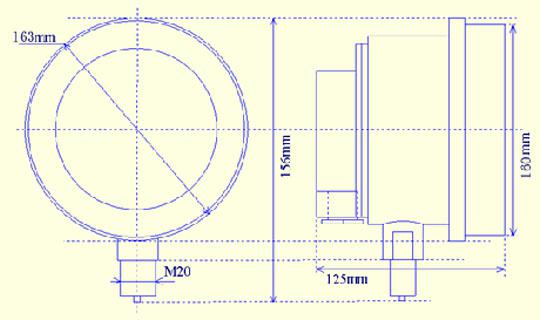

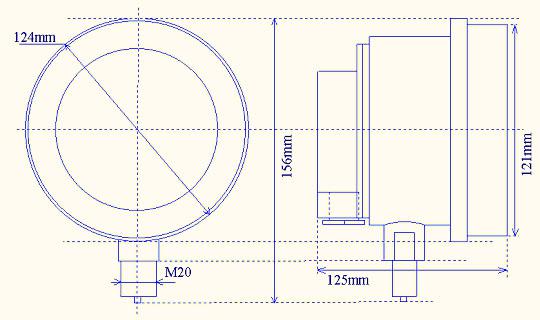

2. dimension   100mm                                    dimension 150mm


Ⅲ. Structure and Working Principle

1. This pressure gauge shell uses flame-proof structure, when the shell internal explosive mixtures affected by sparks or electric arc, when the explosion occurred, do not cause external explosive mixture explode, so as to achieve the goal of explosion-proof.

2, instrument is consist by bourdon pressure gauge and an electric connect device.
Instrument working principle: when the medium get into the spring tube, make its produce displacement, enlarge through the drive mechanism, pointer will be indicate the measured pressure value in the dial. At the same time the pointer drive electric contact device’s movable contact, when the pressure reaches index value, movable contact contacts set pointer’s contact terminal, and processing circuit.

3, insert line of rubber sealing ring inside diameter 10 mm, Shao Ershi hardness 45 to 55 with cable diameter 9.8 mm, 500 VBX type four core lastex (4XI)

4. wiring

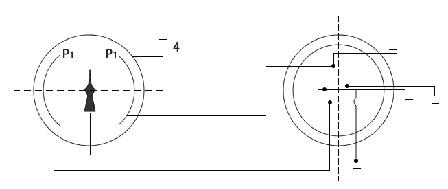

Electrical circuit diagram
