Location -> Products -> Temperature -> Thermocouple and Thermal Resistance -> Assembly Thermocouple

Type：thermocouple with fixed flange

Illustrate： Type 420,421 for anti-spray type, protection class IP65; We also produce the thermocouple with protection tube of other material. Normal pressure is 2.5Mpa.

Thermocouple with Fixed Flange

Type	Graduation	Measuring Range	Thermal Response Time	Protection Tube Material	Specification
					d	L
WRM-420 WRM2-420	N	0-800	<90S	1Cr18Ni9Ti	Φ16	300150 350200 400250 450300 500350 550400 650500 900750 11501000 16501500 2150*2000
		0-1000		0Cr25Ni20
WRM-420G WRM2-420G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-420 WRN2-420	K	0-800	<90S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-420G WRN2-420G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-420 WRE2-420	E	0-700	<90S	1Cr18Ni9Ti
WRE-420G WRE2-420G			<24s
WRC-420 WRC2-420	T	0-350	<90s	1Cr18Ni9Ti
WRC-420G WRC2-420G			<24s
WRF-420 WRF2-420	J	0-600	<90s	1Cr18Ni9Ti
WRF-420G WRF2-420G			<24s
WRM-421 WRM2-421	N	0-800	<20s	1Cr18Ni9Ti	Φ20
		0-1000		0Cr25Ni20
WRM-421G WRM2-421G		0-800	<24s	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-421 WRN2-421	K	0-800	<120S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-421G WRN2-421G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-421 WRE2-421	E	0-700	<120S	1Cr18Ni9Ti
WRE-421G WRE2-421G			<24S
WRC-421 WRC2-421	T	0-350	<120S	1Cr18Ni9Ti
WRC-421G WRC2-421G			<24S
WRF-421 WRF2-421	J	0-600	<120S	1Cr18Ni9Ti
WRF-421G WRF2-421G			<24S

Type 420,421 for anti-spray type, protection class IP65;
We also produce the thermocouple with protection tube of other material.
Normal pressure is 2.5Mpa

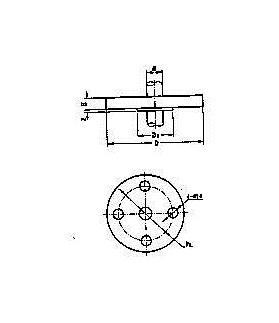

Model type	flange specification
Model type	D	D1	D2	H	D
WRN-420	Φ105	Φ75	Φ55	16	Φ16
WRN-420G	Φ105	Φ75	Φ55	16	Φ16
WRN-421	Φ115	Φ85	Φ65	16	Φ20
WRN-421G	Φ115	Φ85	Φ65	16	Φ20

Type	Graduation	measuring range	thermal response time	protection tube material	specification
					d	L
WRM-430 WRM2-430	N	0-800	<90S	1Cr18Ni9Ti	Φ16	300150 350200 400250 450300 500350 550400 650500 900750 11501000 16501500 2150*2000
		0-1000		0Cr25Ni20
WRM-430G WRM2-430G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-430 WRN2-430	K	0-800	<90S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-430G WRN2-430G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-430 WRE2-430	E	0-700	<90S	1Cr18Ni9Ti
WRE-430G WRE2-430G			<24s
WRC-430 WRC2-430	T	0-350	<90s	1Cr18Ni9Ti
WRC-430G WRC2-430G			<24s
WRF-430 WRF2-430	J	0-600	<90s	1Cr18Ni9Ti
WRF-430G WRF2-430G			<24s
WRM-431 WRM2-431	N	0-800	<20s	1Cr18Ni9Ti	Φ20
		0-1000		0Cr25Ni20
WRM-431G WRM2-431G		0-800	<24s	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-431 WRN2-431	K	0-800	<120S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-431G WRN2-431G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-431 WRE2-431	E	0-700	<120S	1Cr18Ni9Ti
WRE-431G WRE2-431G			<24S
WRC-431 WRC2-431	T	0-350	<120S	1Cr18Ni9Ti
WRC-431G WRC2-431G			<24S
WRF-431 WRF2-431	J	0-600	<120S	1Cr18Ni9Ti
WRF-431G WRF2-431G			<24S

Type 430,431 for water-proof type, protection class IP55;
We also produce the thermocouple with protection tube of other material.
Normal pressure is 2.5Mpa.

Model type	flange specification
Model type	D	D1	D2	H	D
WRN-430	Φ105	Φ75	Φ55	16	Φ16
WRN-430G	Φ105	Φ75	Φ55	16	Φ16
WRN-431	Φ115	Φ85	Φ65	16	Φ20
WRN-431G	Φ115	Φ85	Φ65	16	Φ20
