High quality High adaptability digital vacuum pressure sensor

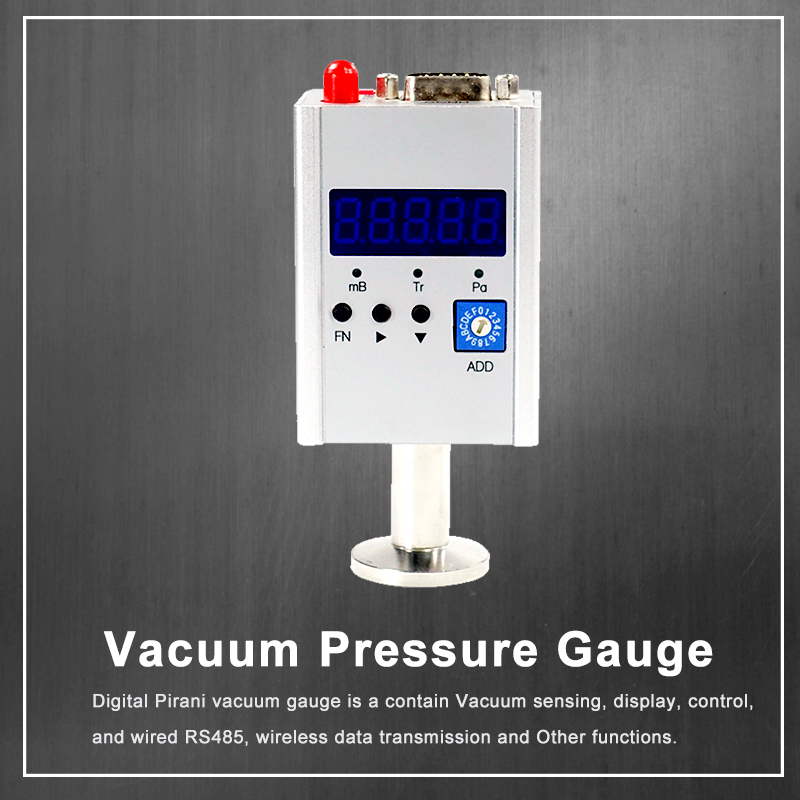

Product Name: DN16 Digital Pirani Vacuum Pressure Gauge
Wetted material: SS316L,tungsten, kovable, glass
Measuring range: 1.0×10-1 ~ 1.0×10+5 Pa(Air,N2)(other gas need to calibrate accordingly)
Accuracy:

1.0×10-1 ~ 1.0×10+4 Pa:±15%

1.0×10+4 ~ 1.0×10+5 Pa:±50%
Repetition:

1.0×10-1 ~ 1.0×10+3 Pa:±2%

1.0×10+3 ~ 1.0×10+5 Pa:±5%
Data collection: Resolution: 1%; response time: <100ms
Working temperature: : 0°C~+45°C;

Storage temperature: -40°C~+75°C
Weight: 155g(DN16ISO-KF flange)

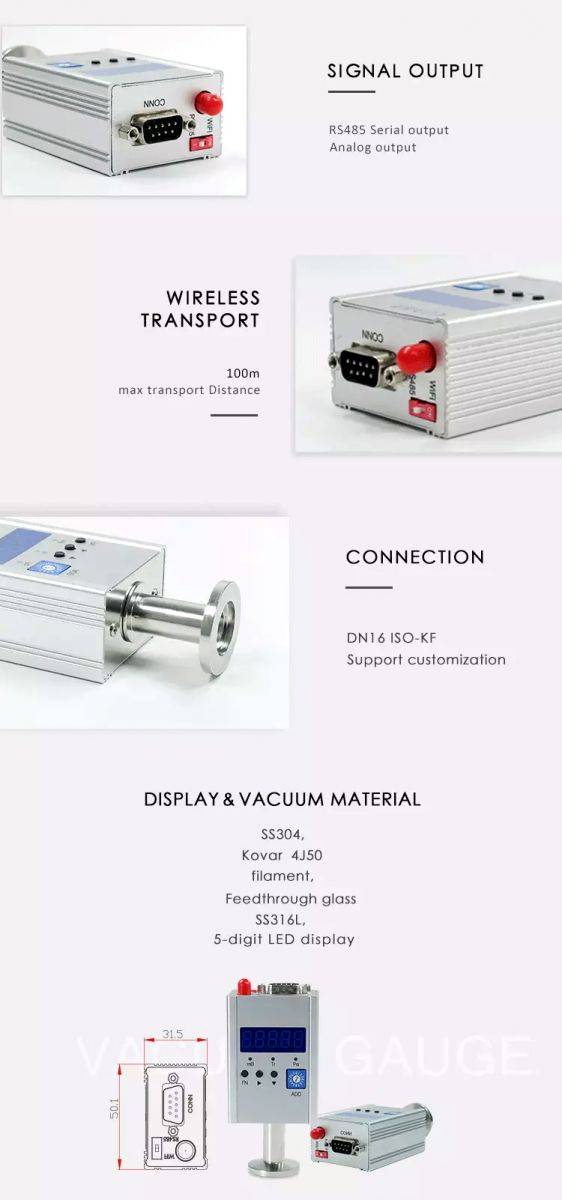

Digital Pirani vacuum pressure sensor is a contain Vacuum sensing, display, control, and wired RS485, wireless data transmission and Other functions.

Wetted material	SS316L,tungsten, kovable, glass
Measuring range	1.0×10-1 ~ 1.0×10+5 Pa(Air,N2) (other gas need to calibrate accordingly)
Accuracy	1.0×10-1 ~ 1.0×10+4 Pa:±15% 1.0×10+4 ~ 1.0×10+5 Pa:±50%
Repetition	1.0×10-1 ~ 1.0×10+3 Pa:±2% 1.0×10+3 ~ 1.0×10+5 Pa:±5%
Data collection	Resolution: 1%; response time: <100ms
Temp characteristics	Working temperature: 0°C~+45°C; Storage temperature: -40°C~+75°C
Power supply	with +24V/0.3A charger;
Electrical signal interface	DSUB9,9-pin(RS485, Analog voltage, power input)
Vacuum chamber	Interface: DN16ISO-KF (other optional); maximum pressure: 1.5×10+5 Pa
Weight	155g (DN16ISO-KF flange)
