As we know, vortex flowmeters are the most accurate flowmeters for measuring steam.

The vortex flow meter is widely used in the flow measurement level, and it also fully plays a key role in accurately measuring steam. So how does the vortex flowmeter measure steam accurately?
Let's learn about three ways vortex flowmeters can accurately measure steam.

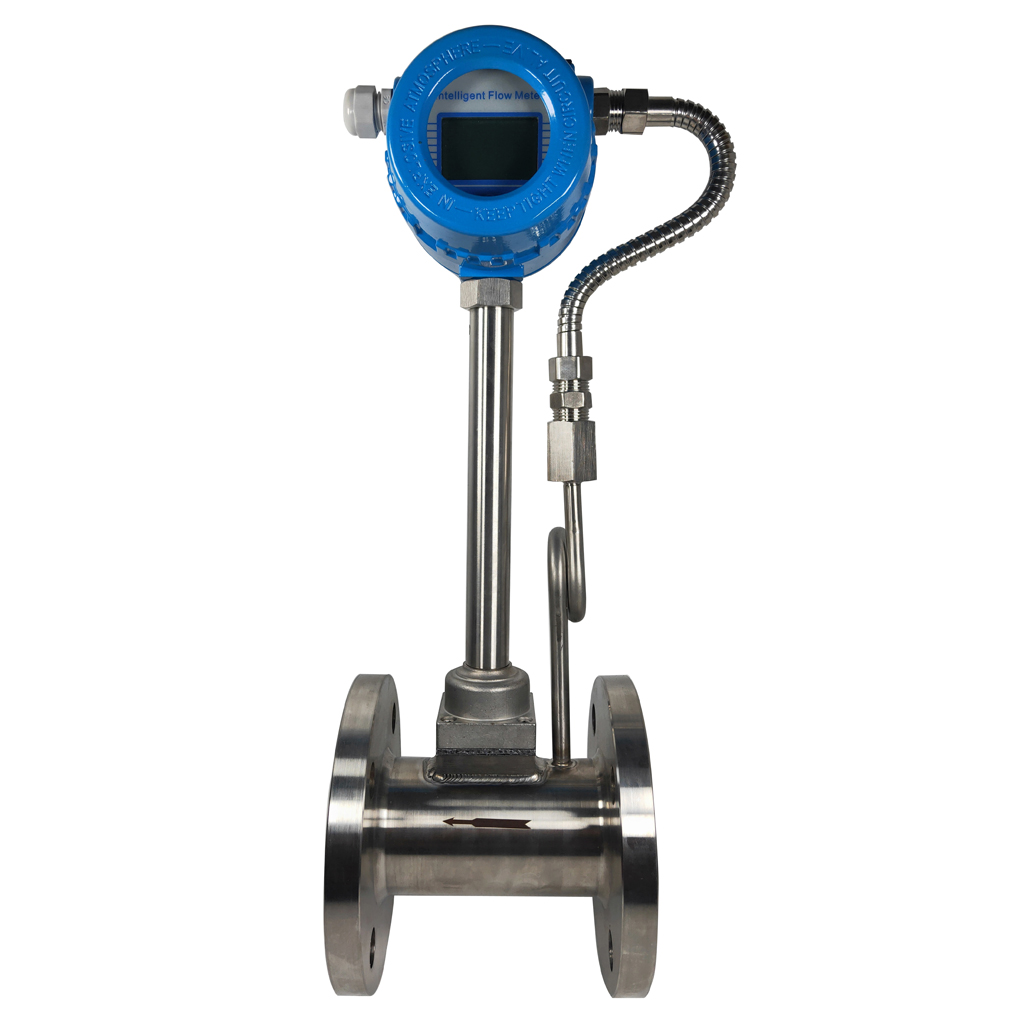

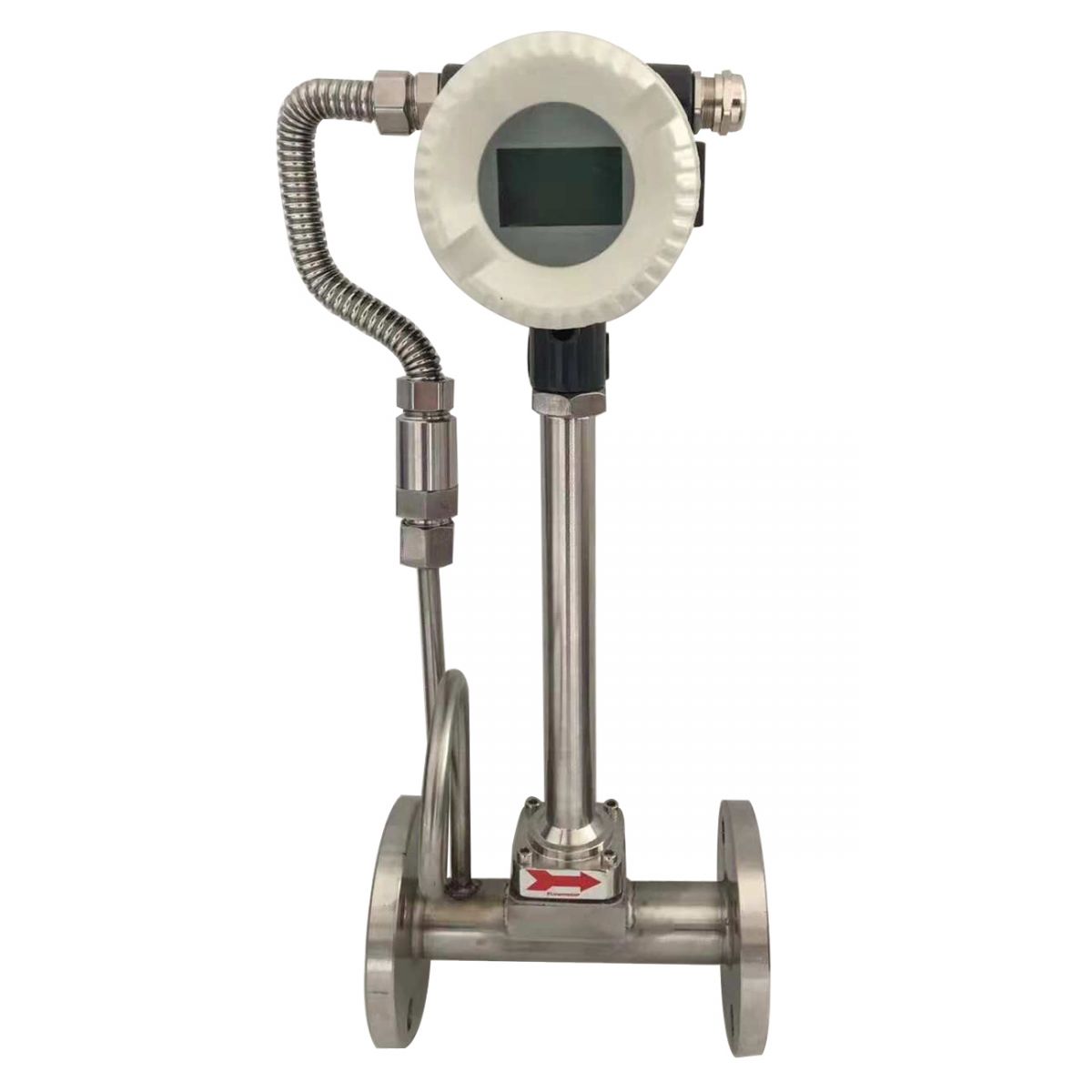

Vortex flow meters with temperature and pressure compensation. It is a very common indirect vortex mass flowmeter, which indirectly calculates the relative density according to the accurate measurement
of the temperature and working pressure in the whole process to calculate the mass of the steam.



Air resistance vortex flow meter. This type of vortex flowmeter is not widely used. It is mainly based on the relationship between the mass flow size of the material and the compressive strength of the vortex,
and the vortex compressive strength is measured to immediately calculate the mass of the material.



Differential pressure vortex mass flowmeter. Accurate measurement is carried out according to the pressure difference between the two pressure-taking holes on special parts of the upper, middle and lower
reaches of the generator, and this gas pressure data signal is affected by the distance between the pressure-taking holes, so it is necessary to select a suitable pressure-taking hole according to the test.
and make the line of the two pressure-taking holes and the line of the generating body in the same plan view.
