winny of Shanghai CIXI Instrument Co., Ltd. will introduce you the features and advantages of CIXI micro flowmeter.

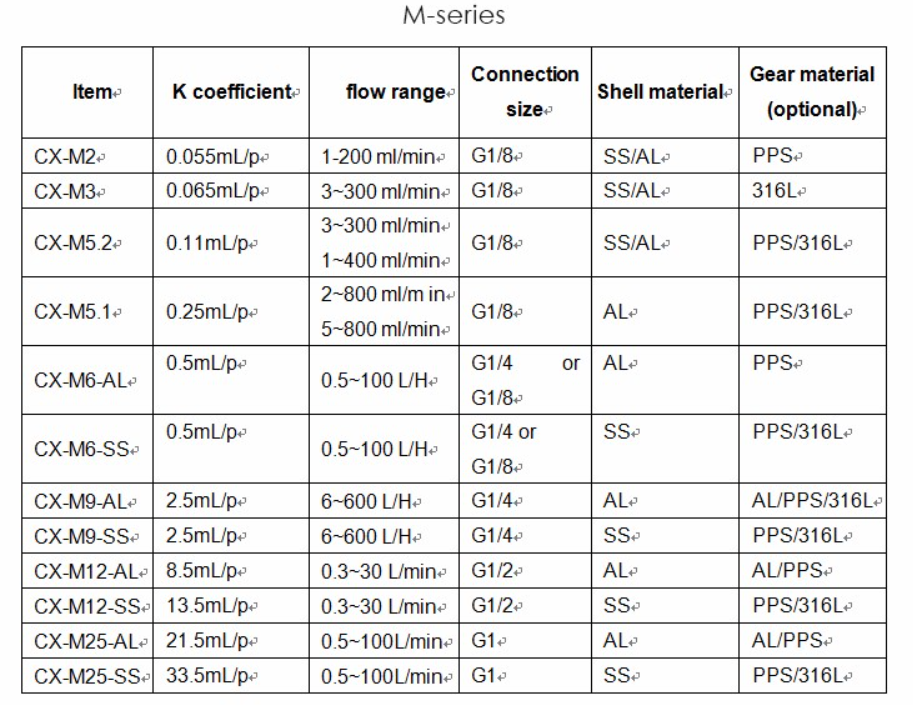

M series low flow meter are mainly used in the measurement of lubricating oil, grease, and low-viscosity liquids.

Measurable viscosity up to 1 million cP medium.

Small vibration noise during working, convenient installation.

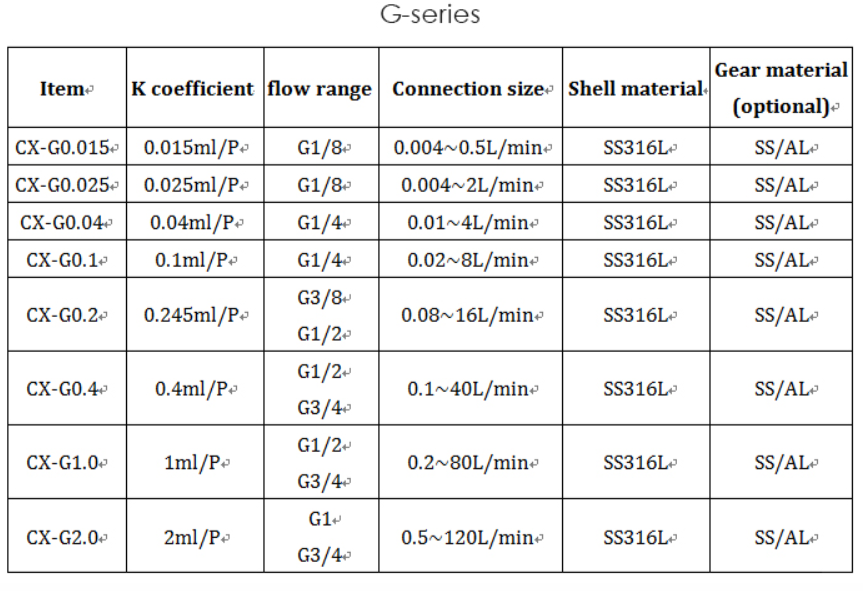

G series mini flow meter is mainly used for dispensing, gluing and quantitative two-component polyurethane glue,

aiming at high viscosity and high resolution flow detection. Measurable viscosity up to

1 million cP medium. Small vibration noise during working, convenient installation.

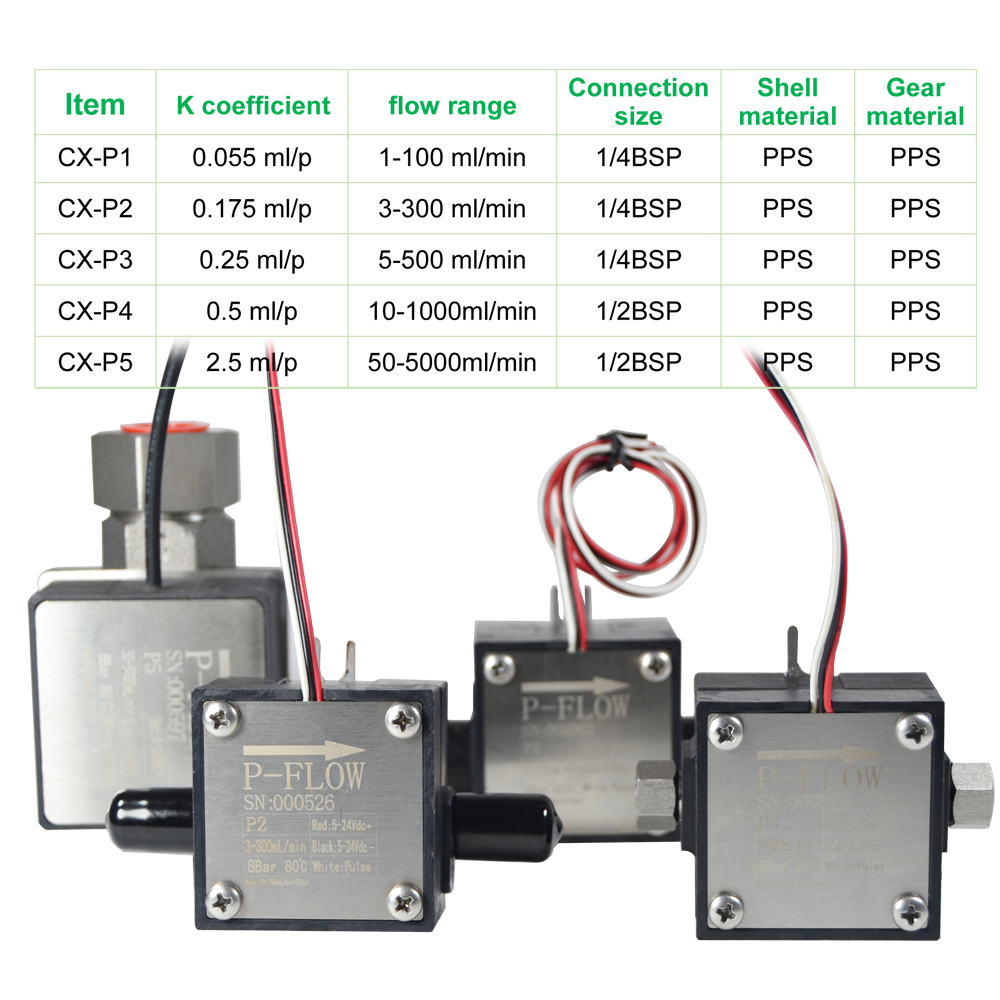

CIXI P series flow meters are all made of corrosion-resistant materials, resistant to acids, alkalis and various solutions, and are suitable for accurate metering of various chemical medium and
low viscosity that cannot be in contact with metals such as stainless steel. Used in the chemical industry or reactor flow monitoring. Small vibration noise during working, convenient installation.





High resolution gear flow meter For high viscosity medium, it is necessary to carry out precise measurement of trace liquid

under low resistance (pressure loss).

Even in the case of extremely slow gear rotation, a small amount of rotation can still give enough pulse number.

Model	Resolution	Connection size	Flow range	Gear material	Shell material
G0.015AL-HR-SW	0.00025ml/P	G1/8	0.004~500mL/min	SS316L	AL
G0.025AL-HR-SW	0.0006ml/P	G1/8	0.008~1L/min	SS316L	AL
G0.04AL-HR-SW	0.0008ml/P	G1/4	0.02~2L/min	SS316L	AL
G0.2AL-HR-SW	0.003ml/P	G3/4	0.16~8L/min	SS316L	AL
G0.4AL-HR-SW	0.006ml/P	G1/2	0.2~20L/ min	SS316L	AL
G1.0AL-HR-SW	0.01ml/P	G1/2	0.4~40L/ min	SS316L	AL
G2.0AL-HR-SW	0.02ml/P	G3/4	1~60L/min	SS316L	AL





Can be integrated display or with DC8Sremote digital display.4-20mA analog output,

Modbus RTU 485 communication, cumulative alarm, instantaneous alarm, etc.

If you want to know more about the characteristic application and quotation of CIXI micro gear flowmeter,
please contact winny:sales01@cxflowmeter.com
