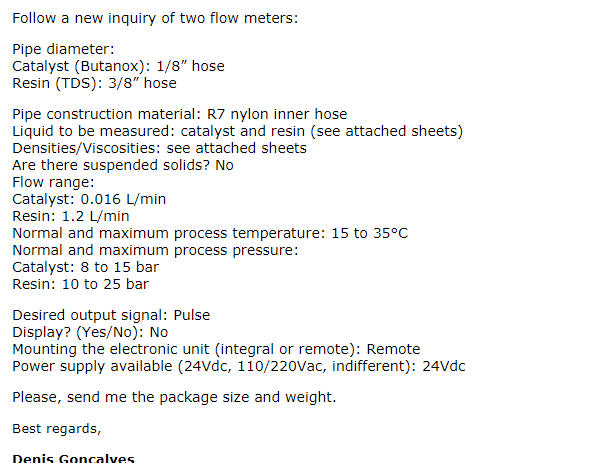

Receive customer consultation, need micro flow meter to measure glue and curing agent





The flow rate, viscosity, temperature, and pressure are all told, so we provide customers with

Recommend M5.2 and G0.04 to customers





2. Parameters

Regarding epoxy resin and curing agent, we need to know the viscosity, the respective viscosity

temperature, pressure



1.Resin viscosity? 430cps

Catalyst (Butanox) viscosity: 24cp



2.flow range: resin 1.2L/min; Catalyst 0.016L/min

4.temperature : 15-35C

5.pressure : 10-25bar

                     8-15bar




three,



1. Pain point, high-viscosity liquids such as glue, low flow rate, and high precision are required, oval gear flowmeters are not acceptable, the gears are prone to jamming, and the curing agent will corrode the plastic gears.

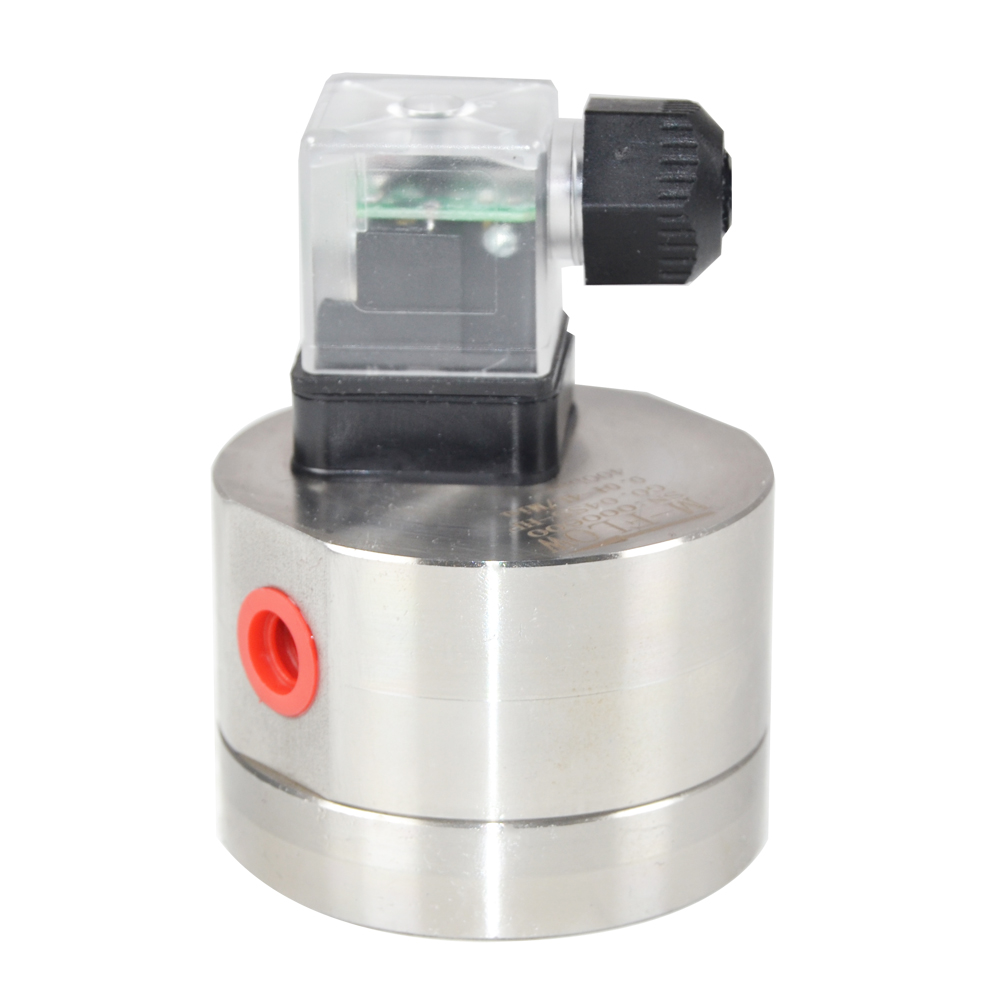

2. Our G series is a circular gear, very suitable for high viscosity, the measurable viscosity is up to 100W cp. And our G series can do high resolution, for example, the pulse coefficient of conventional G0.015 is 0.015ml/P, high frequency The G0.015 pulse coefficient is 0.00025ml/pulse., and the G series gears are stainless steel



3. Accurately measure the control amount, and the quality of the production line can be controlled according to the amount of the flow meter



Our products fully meet the needs of customers, and we will cooperate smoothly later!
