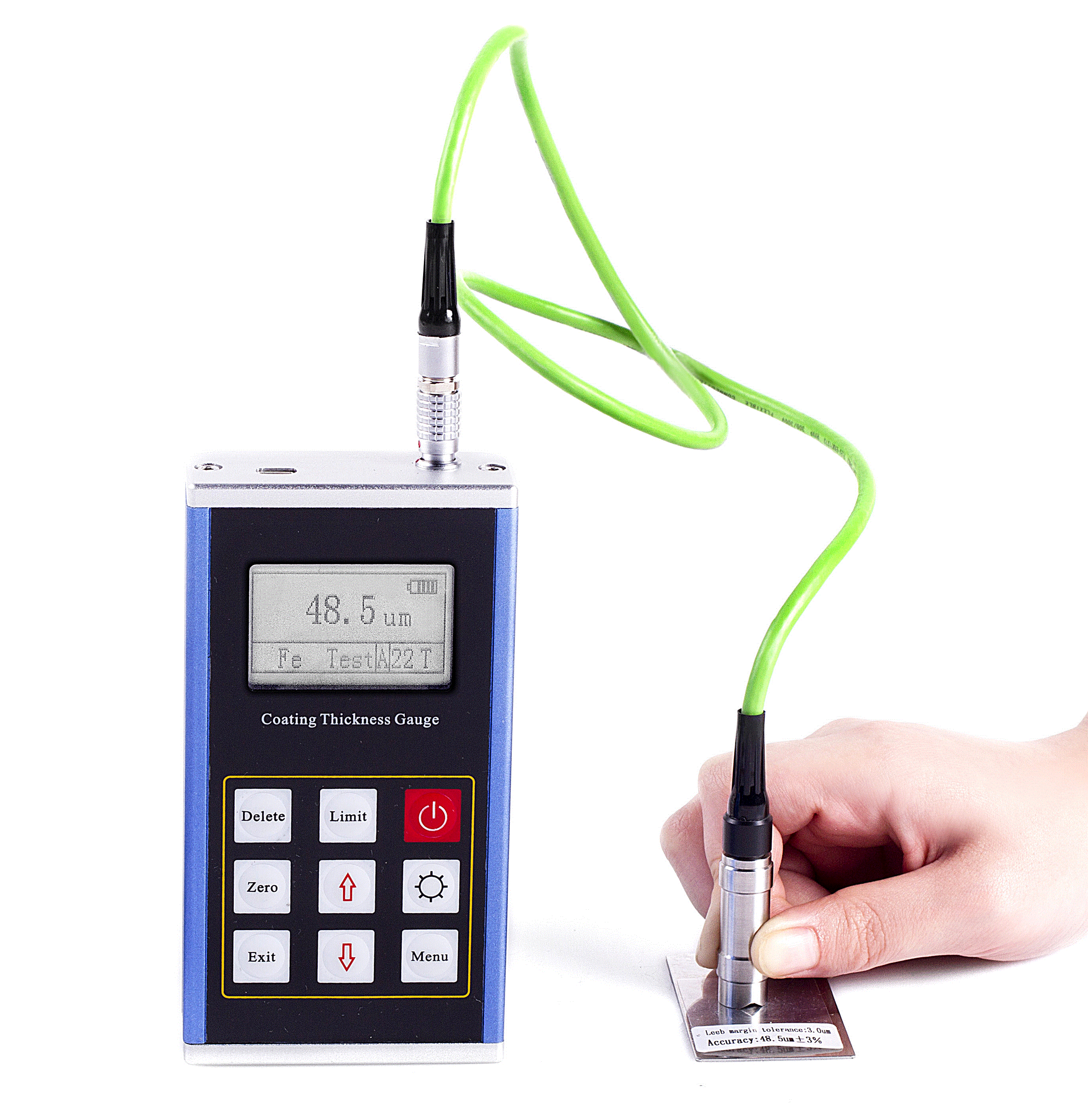

CX-CTG-210,211 Coated Thickness Meter
Main function:

Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive  insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).
Technical parameter:


		CTG-210		CTG-211
Measuring head type		F1（can not pull \out and insert)		N1(can not pull\ out and insert)
Operational principle		Magnetic induction		Eddy current
Measuring range		0~1250μm
Lower limit resolution		0.1μm
Indication error	One-point Calibration	±（3%H+1）
	Two-point calibration	±[（1~3%)H+1]
Measure condition	The mini. radius of curvature(mm)	凸1.5
	Mini. area dia.(mm)	Φ7
	Basic critical thickness(mm)	0.5
Working  environment	Temperature	0~40℃
	Humidity	20%~90%
	Magnetic field	No high-intensity magnetic field
Power supply		“AAA”alkaline batteries（2 pcs）
Outline dimension		115×70×30mm (main body)
Weight		152g	195g
