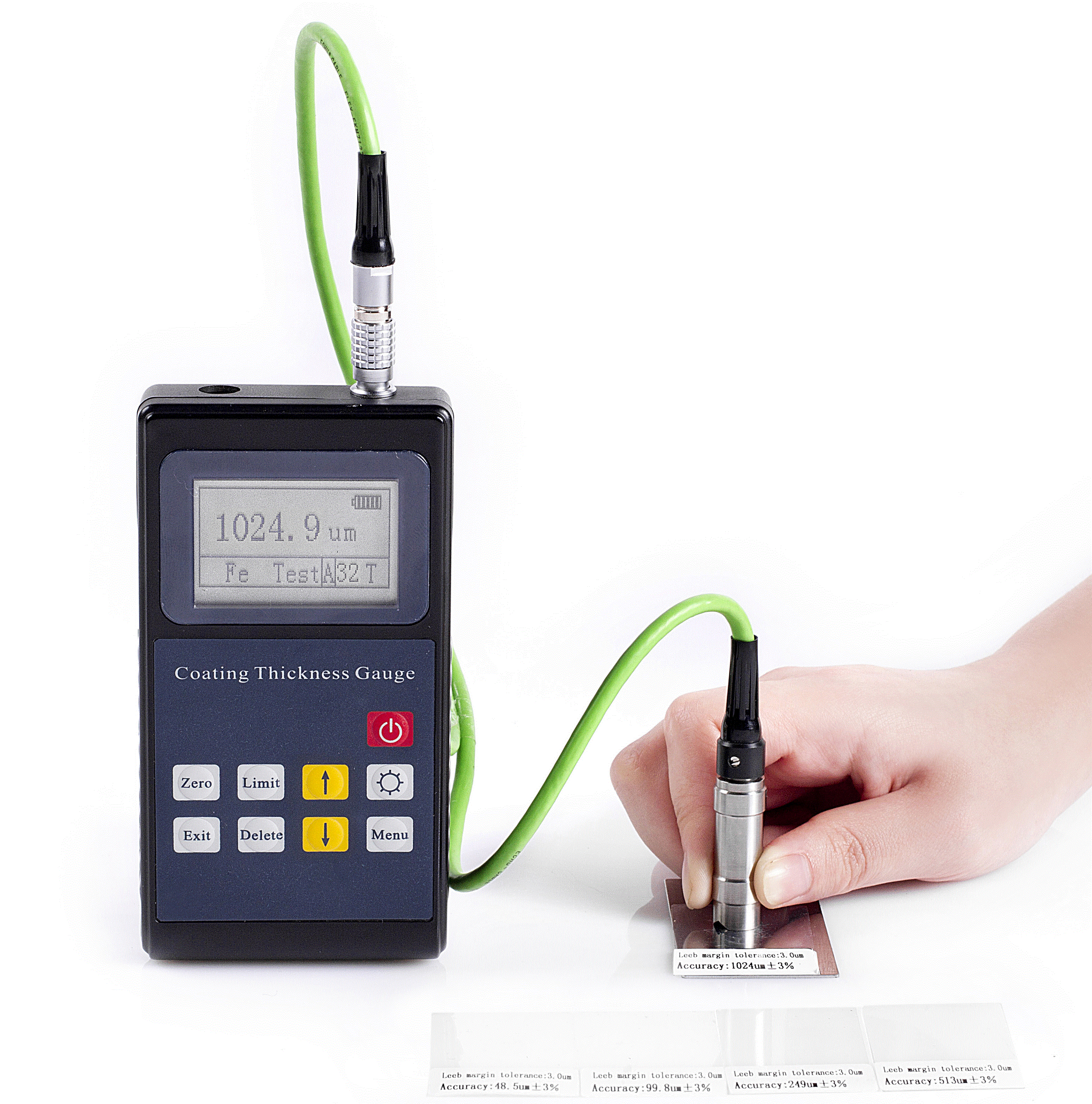

CX-CTG-220, 221, 222 Coated Thickness Meter
 Main function:
   Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive  insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).

●All English menu;
●2 types measuring method;
●2 types working method;
●Memory up to 500 ocs measurement value;
●Data delete function;
●Can set the limits;
●can automatic alarm for measurement value
of out of limits;
●Undervoltage indication of power;
●manual and automatic power off.

Technical parameter:

		CTG-220		CTG-221		CTG-222
Measuring head type		F1		N1		F1 or N1
Operational principle		Magnetic  induction		Eddy current		Magnetic induction  or Eddy current
Measuring range		0～1250μm
Lower limit resolution		0.1μm
Accuracy	One-point Calibration	±（3%H+1）
	Two-point calibration	±[（1~3%)H+1]
Measure condictions	The mini. radius  of curvature(mm)	bulge 1.5、concave 9
	Mini.area dia.(mm)	Φ7
	Basic critical  thickness(mm)	0.5
Working  environment	temperature	0~40℃
	humidity	20%~90%
Power supply		AAA alkaline batteries 1.5V（2 pcs）
Outline dimension		150×55.5×23mm（Main body）
Weight		F1/165g，N1/205g
standard configuration		Main body, “AAA” alkaline  batteries, standard test block, basal body
Optional configuration		-	-		Various probe
