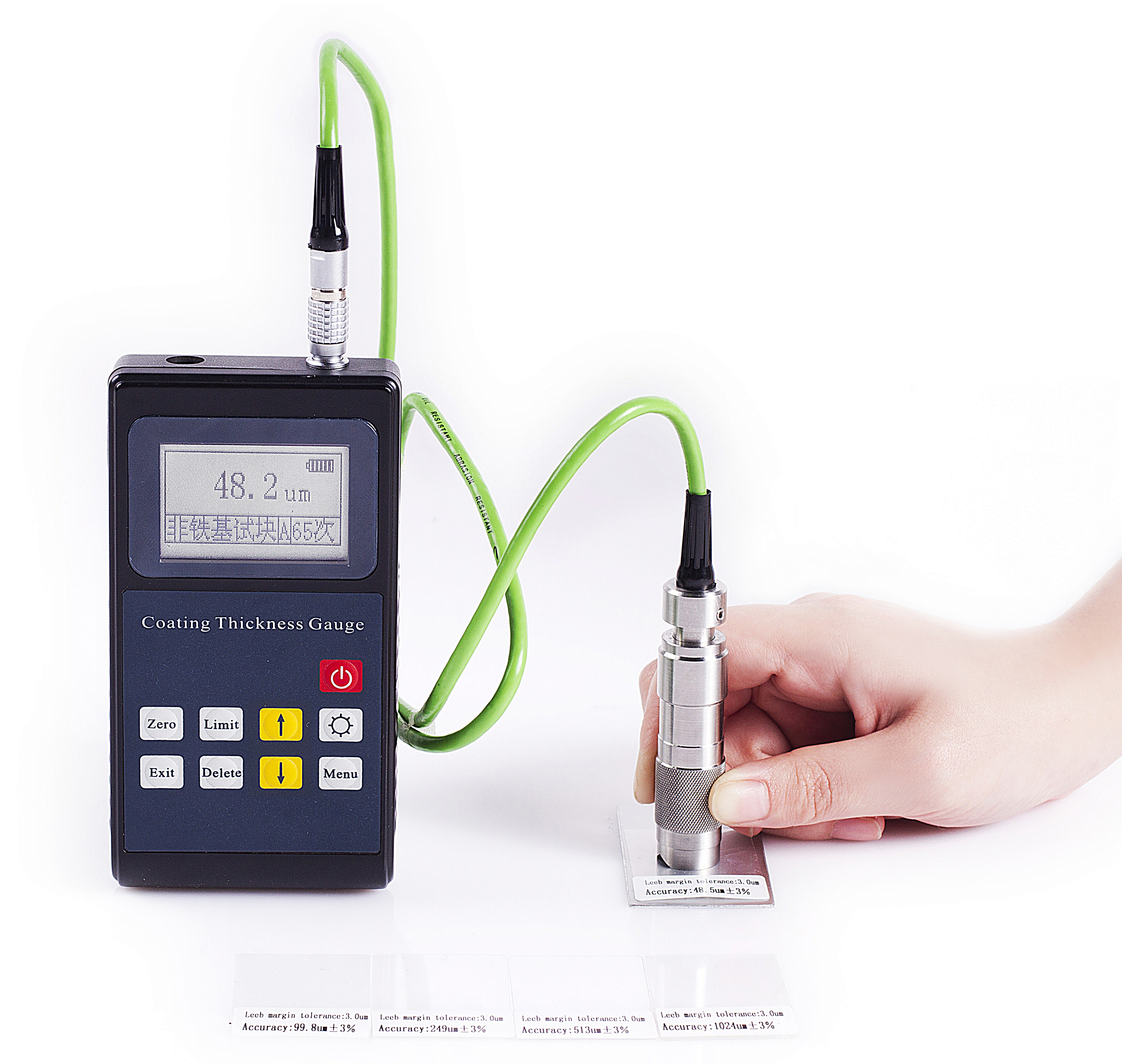

CX-CTG-230,231,232   Coated Thickness Meter
Main function:
   Ribot coated thickness meter with magnetic and eddy current two methods for measurement of thickness, Can be measure the thickness of  magnetic metallic coatings on non-magnetic cover layer nondestructively. (such as steel, iron, alloy  and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and  thickness of the Non-magnetic metal  with non conductive insulating cover layer (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).

●All English menu;
●2 types measuring method;
●2 types working method;
●Memory up to 500 ocs measurement value;
●Data delete function;
●Can set the limits;
●can automatic alarm for measurement value
of out of limits;
●Undervoltage indication of power;
●Manual and automatic power off.
Technical parameter:


		CTG-230	CTG-231	CTG-232
Measuring head type		F1	N1	F1 or N1
Operational principle		Magnetic induction	Eddy current	Magnetic induction  or Eddy current
Measuring range		0~1250μm
Lower limit resolution		0.1μm
Indication error	One-point Calibration	±（3%H+1）
	Two-point calibration	±[（1~3%)H+1]
Measure conditions	The mini. radius of curvature(mm)	protrude1.5,concave 9
	Mini. area dia.(mm)	Φ7
	Basic critical thickness(mm)	0.5
Working  environment	Temp.	0~40℃
	humidity	20%~90%
Power supply		AA alkaline batteries 1.5V（2 pcs）
housing		Metal housing
Overall dimension		150×55.5×23mm（main body）
weight		F1/320g，N1/360g
standard configuration		Main body, “AA” alkaline batteries,  standard test block, basal body
Optional configuration		-	-	All kind of the probe
