Type：110,120 series Leeb hardness tester
Illustrate：Leeb hardness tester is the multi-function hardness measurement instrument. It can displays HL,HB,HRB,HRC,HRA,HV,HS and other hardness value. It is small, exquisite, portable, high reliability; shock-proof, electromagnetic interference.

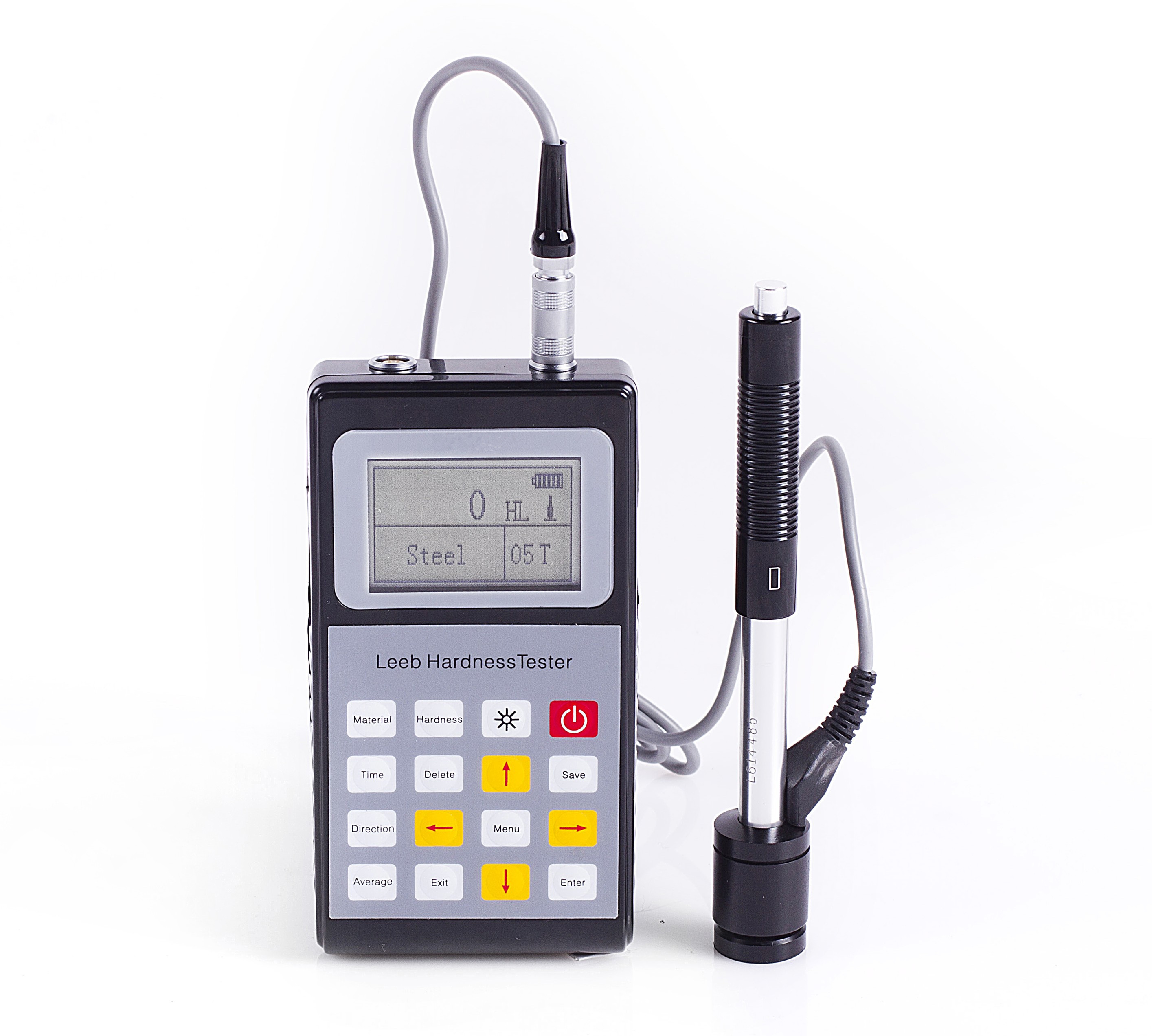

CX-LHT-110,120 Leeb hardness tester
Summarize:
Leeb hardness tester is the multi-function hardness measurement instrument. It can displays HL,HB,HRB,HRC,HRA,HV,HS and other hardness value. It is small, exquisite, portable, high reliability; shock-proof, electromagnetic interference.
It has three calibration function: HL, Hb,HL.
Main function:
● According to leeb hardness measurement principle, can measure various mental material. The value is accurate and stable.
● Displays hardness measurement value immediately, and can transmit freely in different hardness system.
● Can pre-set tolerance limit, when exceed range, it will alarm automatically, it is convenient for user to measure batch test.
●Automatically recognize the impact device type, don’t re-calibrate when change.
● Large screen liquid crystal display, menu type operation, information abundant, audio-visual.
● Highlight LED backlight, it is convenient for using in dark environment.
● Low-power design: automatic dormancy, automatic power-off.
●Common alkaline battery powered, stand-by time is 150hours.
Measured material:
Steel and cast steel, alloyed tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminium alloy, pinchbeck alloy(brass), copper-tin alloy(bronze), fine copper, forged steel.
Application:
●Bearing and other parts, heavy workpieces, metal material warehouse to distinguish, pressure vessels, steam turbine generator set and its equipment failure analysis;
●Mechanical or permanent assemblies installed, very narrow test space of workpiece, require to have the formal and original records to the test results;
●quick test of various measuring parts in large workpiece
Parameter:
Summarize:
Leeb hardness tester is the multi-function hardness measurement instrument. It can displays HL,HB,HRB,HRC,HRA,HV,HS and other hardness value. It is small, exquisite, portable, high reliability; shock-proof, electromagnetic interference.
It has three calibration function: HL, Hb,HL.
Main function:
● According to leeb hardness measurement principle, can measure various mental material. The value is accurate and stable.
● Displays hardness measurement value immediately, and can transmit freely in different hardness system.
● Can pre-set tolerance limit, when exceed range, it will alarm automatically, it is convenient for user to measure batch test.
●Automatically recognize the impact device type, don’t re-calibrate when change.
● Large screen liquid crystal display, menu type operation, information abundant, audio-visual.
● Highlight LED backlight, it is convenient for using in dark environment.
● Low-power design: automatic dormancy, automatic power-off.
●Common alkaline battery powered, stand-by time is 150hours.
Measured material:
Steel and cast steel, alloyed tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminium alloy, pinchbeck alloy(brass), copper-tin alloy(bronze), fine copper, forged steel.
Application:
●Bearing and other parts, heavy workpieces, metal material warehouse to distinguish, pressure vessels, steam turbine generator set and its equipment failure analysis;
●Mechanical or permanent assemblies installed, very narrow test space of workpiece, require to have the formal and original records to the test results;
●quick test of various measuring parts in large workpiece
Parameter:
| LHT-110 | LHT-110 | |
| Indication error | ±6HLD（HLD=760） | ±6HLD（HLD=760） |
| Indication repeatability | 6HLD（HLD=760） | 6HLD（HLD=760） |
| Test direction | 360° | 360° |
| Hardness system | HL、HB、HRC、HRB、 HV、HS | HL、HB、HRC、HRB、HV、HS |
| Identification impact device | D(can’t pull out and insertion） | D,G,C,DL,DC,D+15 |
| PC communication | / | Yes |
| Overall dimension | 129×68×25mm | 129×68×25mm |
| weight | 230g | 240g |
| Standard configuration |
Main body, D type impact device, HRD standard hardness block |
Main body, D type impact device, HRD standard hardness block, nylon brush, back-up ring |
| Optional | nylon brush, back-up ring |
Abnormal shape back-up ring, abnormal shape impact device, standard hardness block, communication software |
