Type：130,140 series Leeb Hardness Tester
Illustrate： ● According to leeb hardness measurement principle, can measure various mental material. The value is accurate and stable.

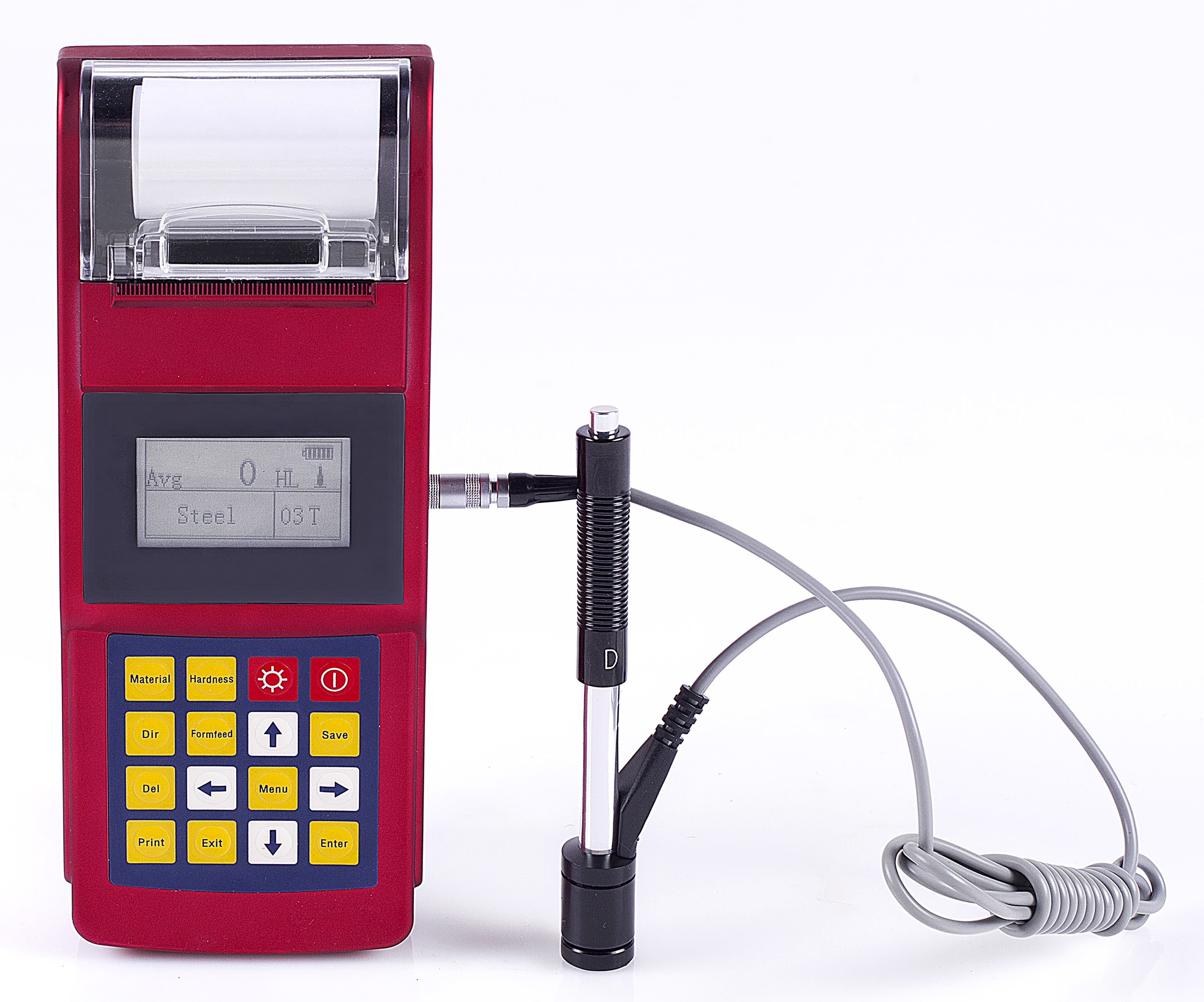

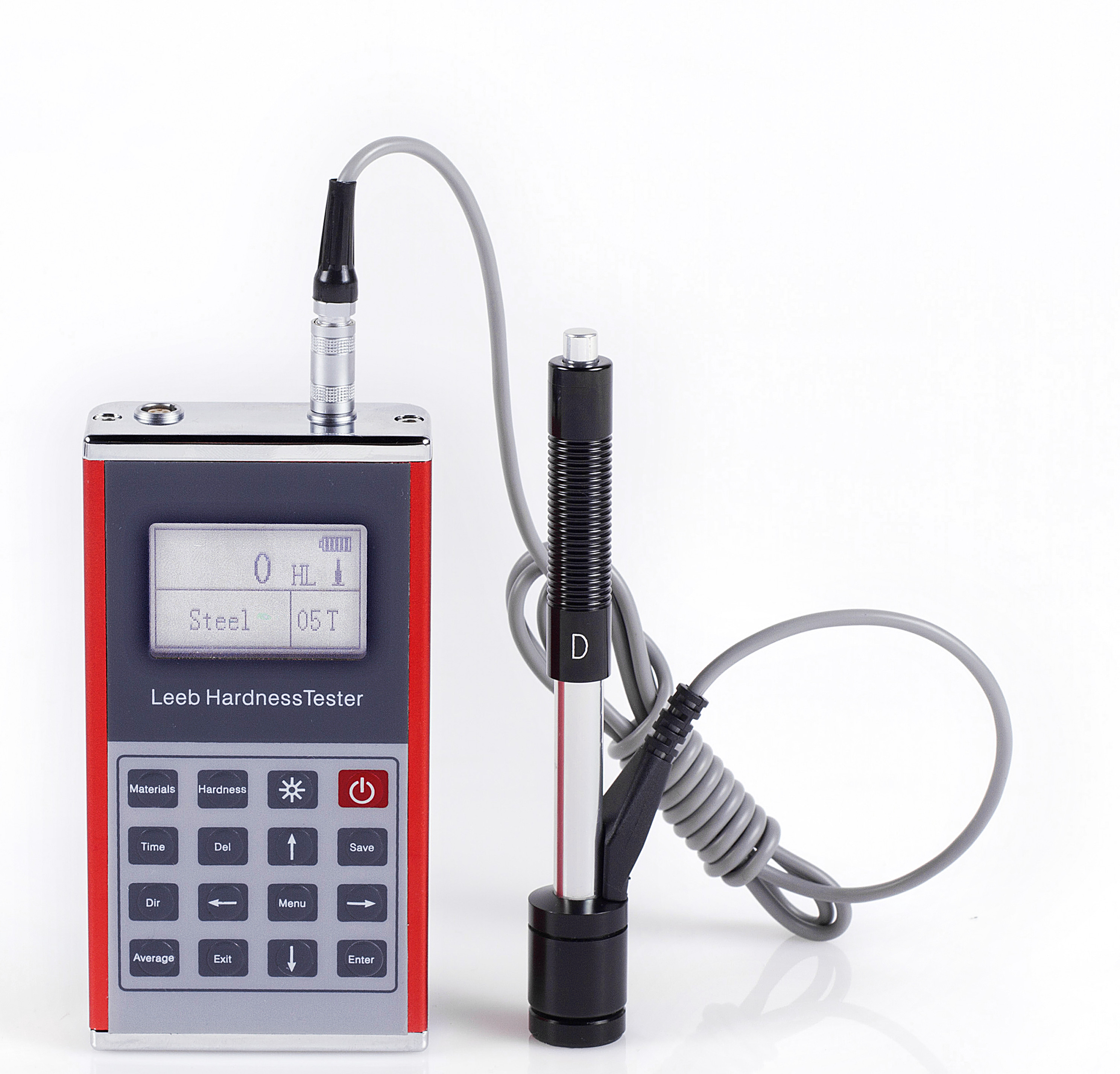

CX-LHT-130,140 Leeb Hardness Tester
Main function:
● According to leeb hardness measurement principle, can measure various mental material. The value is accurate and stable.
● Displays hardness measurement value immediately, and can transmit freely in different hardness system.
● Can pre-set tolerance limit, when exceed range, it will alarm automatically, it is convenient for user to measure batch test.
● Can match 8 different kinds of impact device, automatically recognize the impact device type, don’t re-calibrate when change.
● Large screen liquid crystal display, menu type operation, information abundant, audio-visual.
● Highlight LED backlight, it is convenient for using in dark environment.
●Built-in high speed thermal printer, print the measuring data on site immediately.
● Low-power design: automatic dormancy, automatic power-off.
● Whole sealing mental housing; strong antijamming capability.
●Common alkaline battery powered, stand-by time is 150hours, suitable for field operation.
Measured material:
Steel and cast steel, alloyed tool steel, stainless steel, gray cast iron, nodular cast iron,
cast aluminium alloy, pinchbeck alloy(brass), copper-tin alloy(bronze), fine copper, forged steel.
Parameter:
Main function:
● According to leeb hardness measurement principle, can measure various mental material. The value is accurate and stable.
● Displays hardness measurement value immediately, and can transmit freely in different hardness system.
● Can pre-set tolerance limit, when exceed range, it will alarm automatically, it is convenient for user to measure batch test.
● Can match 8 different kinds of impact device, automatically recognize the impact device type, don’t re-calibrate when change.
● Large screen liquid crystal display, menu type operation, information abundant, audio-visual.
● Highlight LED backlight, it is convenient for using in dark environment.
●Built-in high speed thermal printer, print the measuring data on site immediately.
● Low-power design: automatic dormancy, automatic power-off.
● Whole sealing mental housing; strong antijamming capability.
●Common alkaline battery powered, stand-by time is 150hours, suitable for field operation.
Measured material:
Steel and cast steel, alloyed tool steel, stainless steel, gray cast iron, nodular cast iron,
cast aluminium alloy, pinchbeck alloy(brass), copper-tin alloy(bronze), fine copper, forged steel.
Parameter:
| LHT-130 | LHT-140 | |
| Indication error | ±6HLD（HLD=760） | |
| Indication repeatability | 6HLD（HLD=760） | |
| Indentification impact device type | D,G,C,DL,DC,D+15,DS,E | |
| Measuring direction | 360° | |
| Hardness system | HL,HB,HRC,HRB, HV,HS | |
| PC communication | yes | |
| Printing paper diameter | / | 26.7±0.5mm |
| Printing paper wide | / | 56.5±0.5mm |
| Working voltage | AA type alkalinity battery 1.5V two pieces | Chargeable NI-MH battery 6V |
| Charge time | / | 3-6 hour |
| Charge power supply | / | 9V/600mA |
| Overall dimension | 130×70×25mm | 230×86×46mm |
| Weight | 450g | 400g |
| Standard configuration |
Main body, D type impact device, HRS standard hardness block, nylon brush, back-up ring |
Main body, D type impact device, HRS standard hardness block, nylon brush, back-up ring, charger, printing paper, leather sheath |
| optional |
All kinds of abnormal shape back-up ring, abnormal impact device, standard hardness block, communication software |
|
| housing | Mental housing | Plastic housing |
