liquid hydrogen flowmeter selection
Today, a customer asked what kind of precision flow meter is suitable for liquid hydrogen flowmeter. He provided the following information:
Medium liquid hydrogen
Temperature is -252.8°C
Pressure: 1MPa;
Flow rate: 0.15 cubic meters per hour;
Diameter size: half an inch (12.7mm)

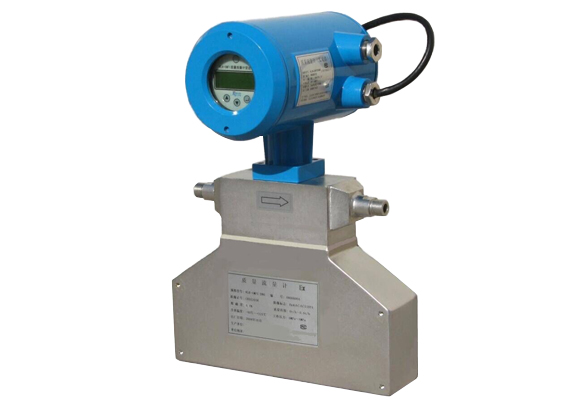

After receiving the information and analyzing it, our technicians recommended the Coriolis mass flowmeter to him. The following is the detailed information of this flowmeter:
Model: DN3
Medium: liquid hydrogen
Pressure: 1 .6Mpa
Output: 4-20mA+0-10KHz+485 communication+Hart
Display unit: kg/h
Flow rate: 0-12kg/h (Nm³/h can be displayed)
Temperature: -253~150°C
Display: instantaneous flow rate, cumulative flow rate, temperature
Accuracy: ±0.5%
Power supply: 24VDC
Measuring tube material: 316L stainless steel
Type: split type
Cable: 1 meter
Explosion-proof grade: ExdibIICT6Gb
Protection grade: IP67
Interface: 1/2" custom interface
Remarks: Working pressure: 1MPa
If you also meet the needs of liquid hydrogen flowmeter, other liquefied gas flowmeter, precision flowmeter, industrial chemical flowmeter, please consult CIXIFM winny:
Email: sales01@cxflowmeter.com
whatsapp: 008618049841995
